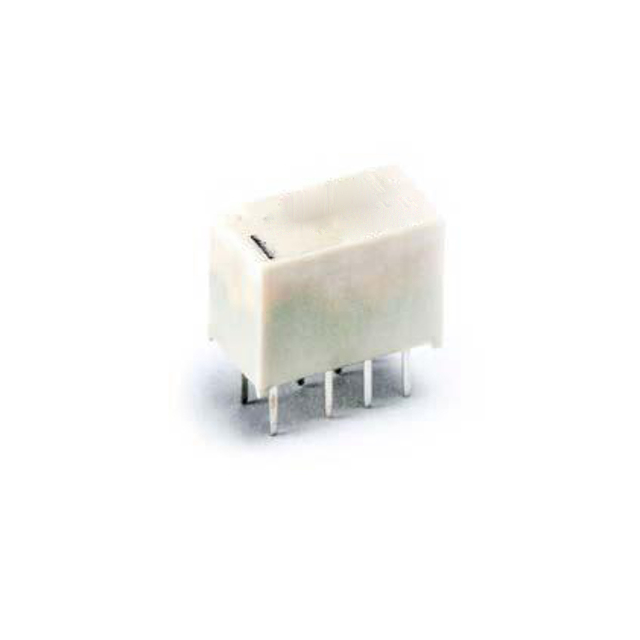

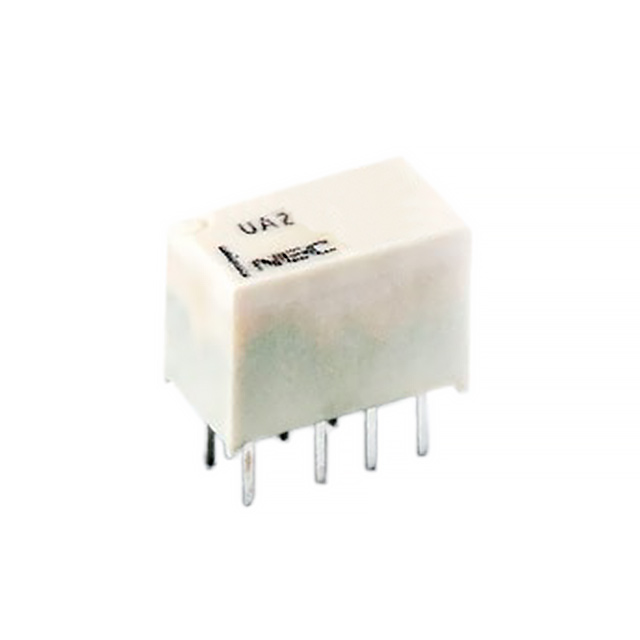

UA2-12 Series
Manufacturer: KEMET
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 12V
| Part | Coil Resistance | Coil Type | Mounting Type | Approval Agency | Switching Voltage [Max] | Relay Type | Coil Voltage | Operate Time | Must Release Voltage | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Must Operate Voltage | Release Time | Contact Form | Contact Rating (Current) | Termination Style | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1030 Ohms | Non Latching | Through Hole | CSA TUV UL | 220 VDC 250 VAC | General Purpose | 12 VDC | 2 ms | 1.2 VDC | 11.7 mA | 85 °C | -40 C | Gold Alloy Silver Alloy | 9 VDC | 1 ms | DPDT (2 Form C) | 1 A | PC Pin | 220 W 250 VA |
 KEMET | 1440 Ohms | Latching Single Coil | Through Hole | CSA TUV UL | 220 VDC 250 VAC | General Purpose | 12 VDC | 2 ms | 8.3 mA | 85 °C | -40 C | Gold Alloy Silver Alloy | 9 VDC | 1 ms | DPDT (2 Form C) | 1 A | PC Pin | 220 W 250 VA |
