DHR4E4A Series

Catalog

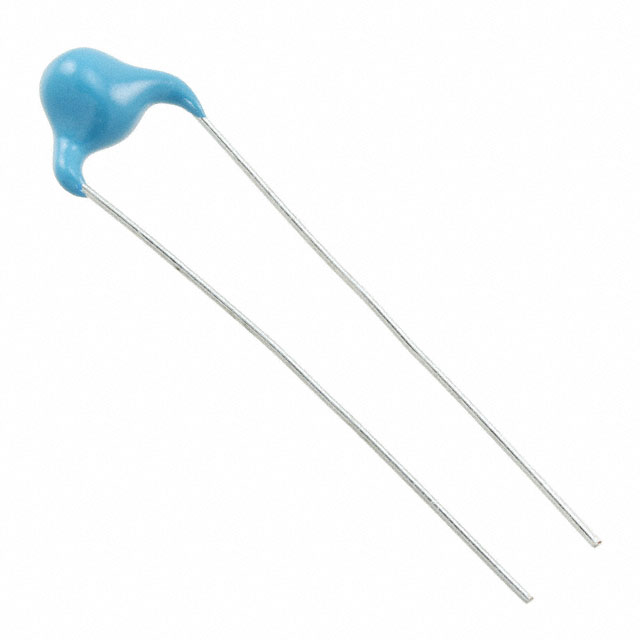

CAP CER 220PF 10KV ZM RADIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style	Mounting Type	Height - Seated (Max)
Murata Electronics DHR4E4A221K2BB	9 mm	0.354 in	Disc Radial	ZM	10 kV	10 kV	10 %	0.374 in	9.5 mm	General Purpose	10 mm	0.394 in	220 pF	High Voltage	100 °C	-25 °C	Straight	Through Hole
Murata Electronics DHR4E4A331K2BB	10 mm	0.394 in	Disc Radial	ZM	10 kV	10 kV	10 %	0.374 in	9.5 mm	General Purpose	14 mm	0.551 in	330 pF	High Voltage	100 °C	-25 °C	Straight	Through Hole
Murata Electronics DHR4E4A151K2BB	8 mm	0.315 in	Disc Radial	ZM	10 kV	10 kV	10 %	0.374 in	9.5 mm	General Purpose		0.472 in	150 pF		100 °C	-25 °C	Straight	Through Hole	12 mm
