9WP0912 Series

Catalog

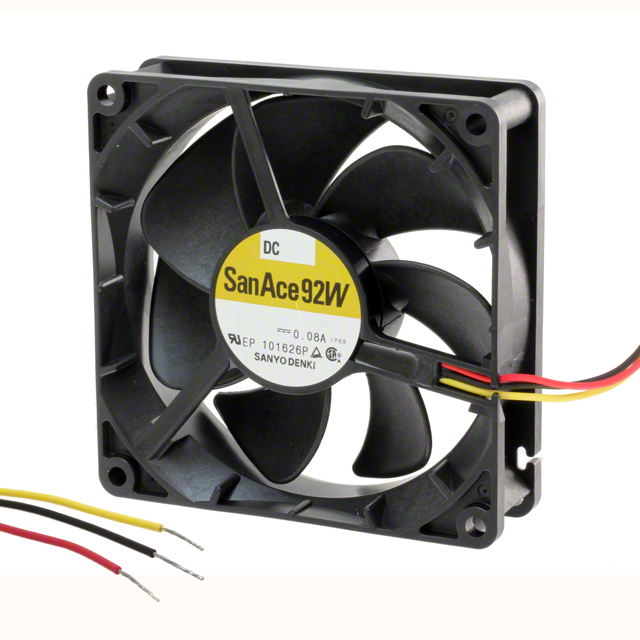

FAN AXIAL 92X25MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Features	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Voltage - Rated	Termination	Noise	Ingress Protection	Width [y]	Bearing Type	Fan Type	Air Flow	Air Flow
Sanyo Denki America Inc. 9WP0912S401	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	270 mA	92 mm	92 mm	CSA TUV UL	3.24 W	-20 ░C	70 °C	3550 RPM	Speed Sensor (Tach)	0.225 in H2O	56 Pa	0.265 lb	120.2 g	12 VDC	3 Wire Leads	39 dB(A)	IP68 - Dust Tight Waterproof	25 mm	Ball	Tubeaxial	1.64 m³/min	58.6 CFM
Sanyo Denki America Inc. 9WP0912F4D01	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	140 mA	92 mm	92 mm	CSA TUV UL	1.68 W	-20 ░C	70 °C	2650 RPM	Locked Rotor Sensor	0.129 in H2O	32.1 Pa	0.265 lb	120.2 g	12 VDC	3 Wire Leads	30 dB	IP68 - Dust Tight Waterproof	25 mm	Ball	Tubeaxial	1.23 m³/min	43.8 CFM
