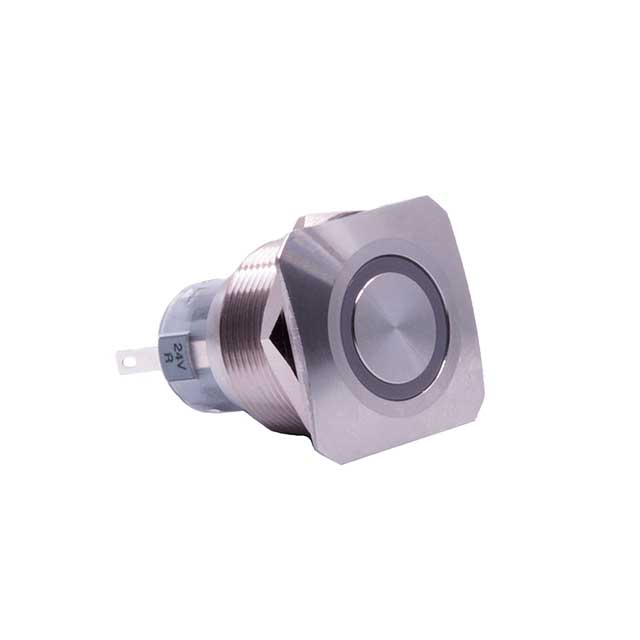

PVS7 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PB DPDT 2A 24V
| Part | Electrical Life | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Type | Actuator Marking | Panel Cutout Dimensions [diameter] | Circuit | Color - Actuator/Cap | Switch Function | Ingress Protection | Actuator Type | Termination Style | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

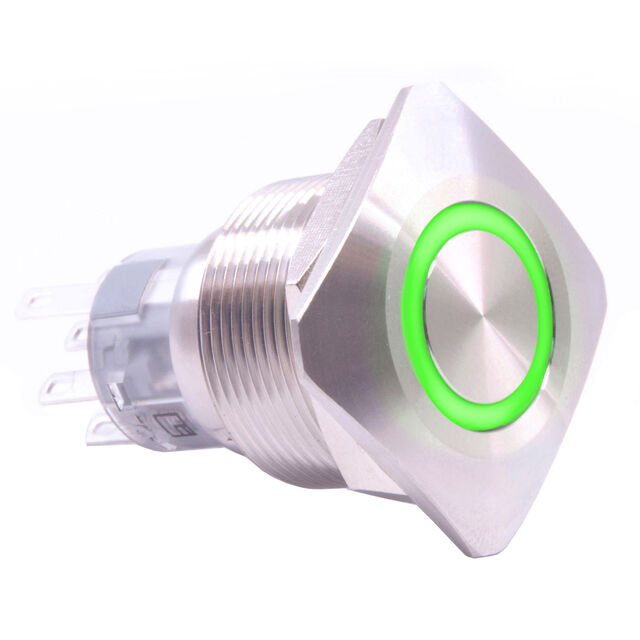

 E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | DPDT | Silver | On-On | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Green LED | 55 °C | -20 ░C | |
E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | Power Symbol | 22 mm | DPDT | Silver | On-Mom | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Green LED | 55 °C | -20 ░C | 24 V |
 E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | DPDT | Silver | On-Mom | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Blue LED | 55 °C | -20 ░C | |

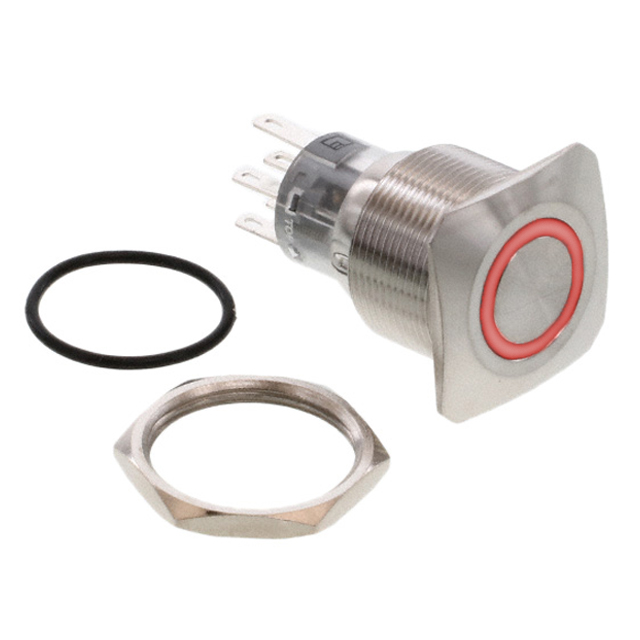

 E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | DPDT | Silver | On-On | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | LED Red | 55 °C | -20 ░C | |

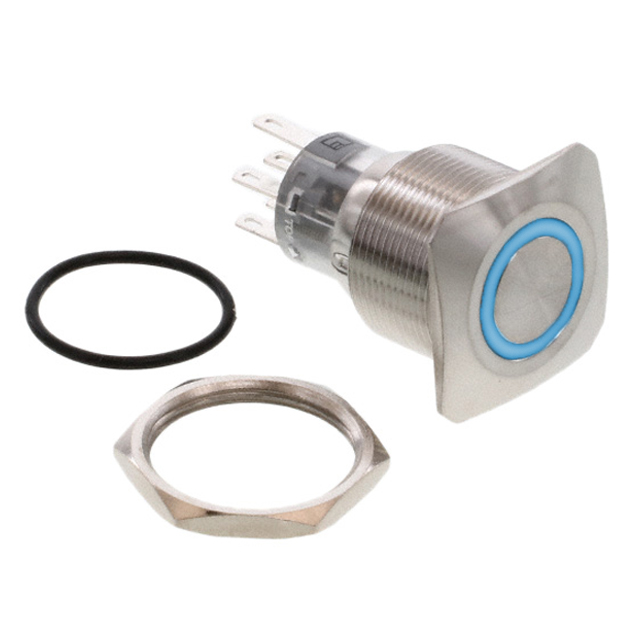

E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | DPDT | Silver | On-On | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Blue LED | 55 °C | -20 ░C | |
 E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | SPDT | Silver | On-Mom | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Green LED | 55 °C | -20 ░C | 24 V |
 E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | No Marking | 22 mm | DPDT | Silver | On-Mom | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Green LED | 55 °C | -20 ░C | |
E-Switch | 50000 Cycles | 24 V | Panel Mount Front | 2 A | Anti-Vandal Illuminated | Power Symbol | 22 mm | DPDT | Silver | On-Mom | IP65 - Dust Tight Water Resistant | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | Green LED | 55 °C | -20 ░C |
