AMPMODU HV-100/HV-190 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

32P HV100 REC CON. TE, 7.0MM,TIN

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Fastening Type	Contact Type	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Mating	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Height [z]
TE Connectivity AMP Connectors 3-215298-2	98.4 Áin	2.5 Ám	Square	Polyester Glass Filled	Beryllium Copper	98.4 Áin	2.5 µm	0.276 in	7 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0	2.5 µm	98.4 µin	0.1 "	2.54 mm	Kinked Pin Solder	Receptacle
TE Connectivity AMP Connectors 3-215298-6			Square	Polyester Glass Filled	Beryllium Copper		2.5 µm	0.276 in	7 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0	2.5 µm	98.4 µin	0.1 "	2.54 mm	Kinked Pin Solder	Receptacle	98.4 µin	36

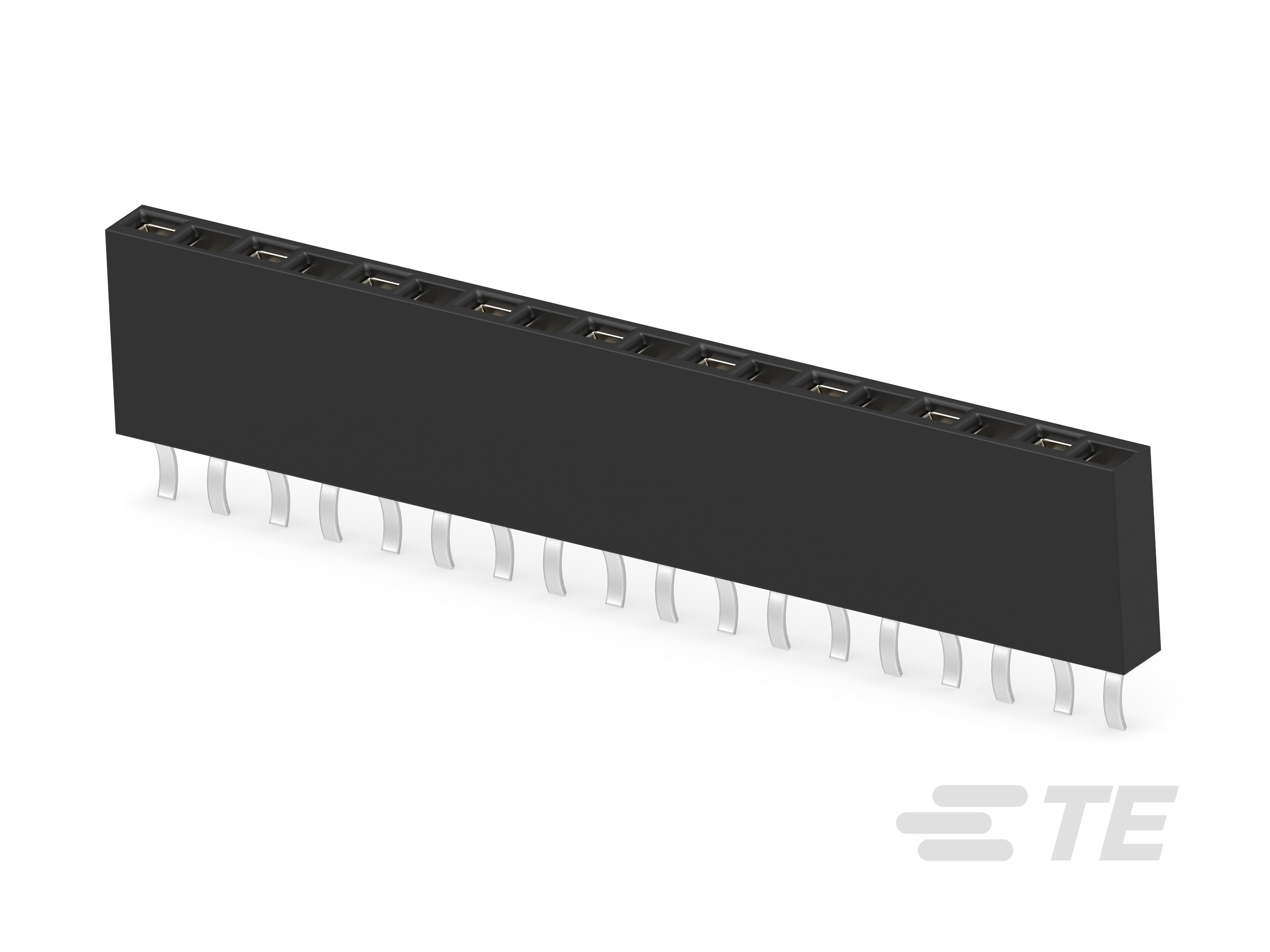

TE Connectivity AMP Connectors 1-215299-8	31.5 µin	0.8 µm						0.335 "	8.51 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle		18	Gold
TE Connectivity AMP Connectors 215309-9	31.5 µin	0.8 µm	Square	Polyester Glass Filled	Phosphor Bronze		2.5 µm	0.335 "	8.51 mm	Through Hole	Black Green	Push-Pull	Female Socket		All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle	98.4 µin	18	Gold	2	0.1 in	2.54 mm

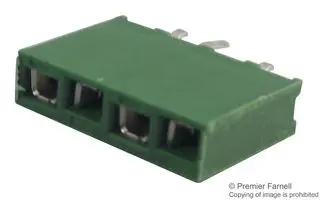

TE Connectivity AMP Connectors 215297-4	31.5 µin	0.8 µm						0.276 in	7 mm	Through Hole	Black Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle		4	Gold

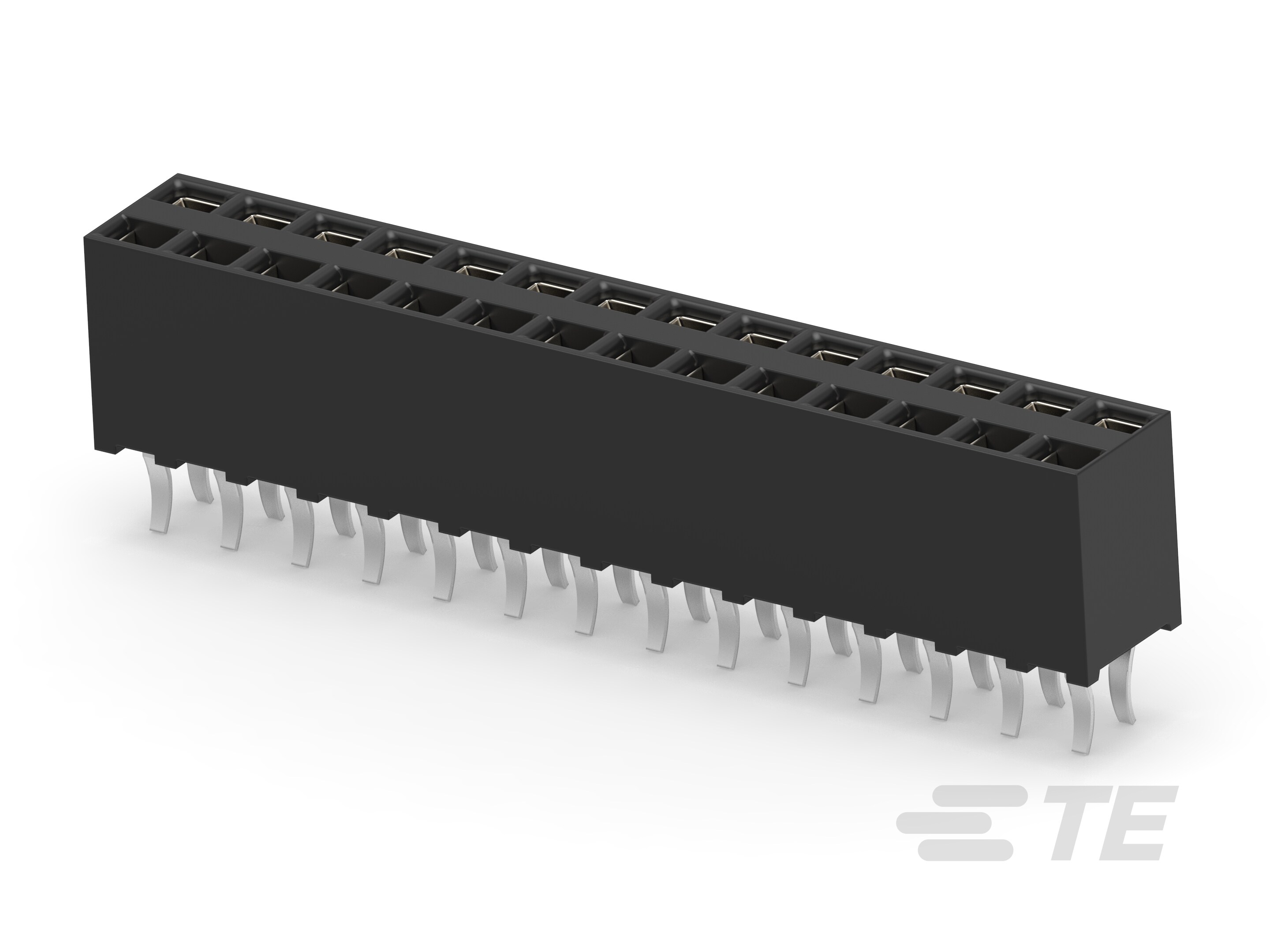

TE Connectivity AMP Connectors 1-215307-4	31.5 µin	0.8 µm	Square	Polyester Glass Filled	Phosphor Bronze		2.5 µm	0.276 in	7 mm	Through Hole	Green	Push-Pull	Female Socket		All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle	98.4 µin	28	Gold	2	0.1 in	2.54 mm

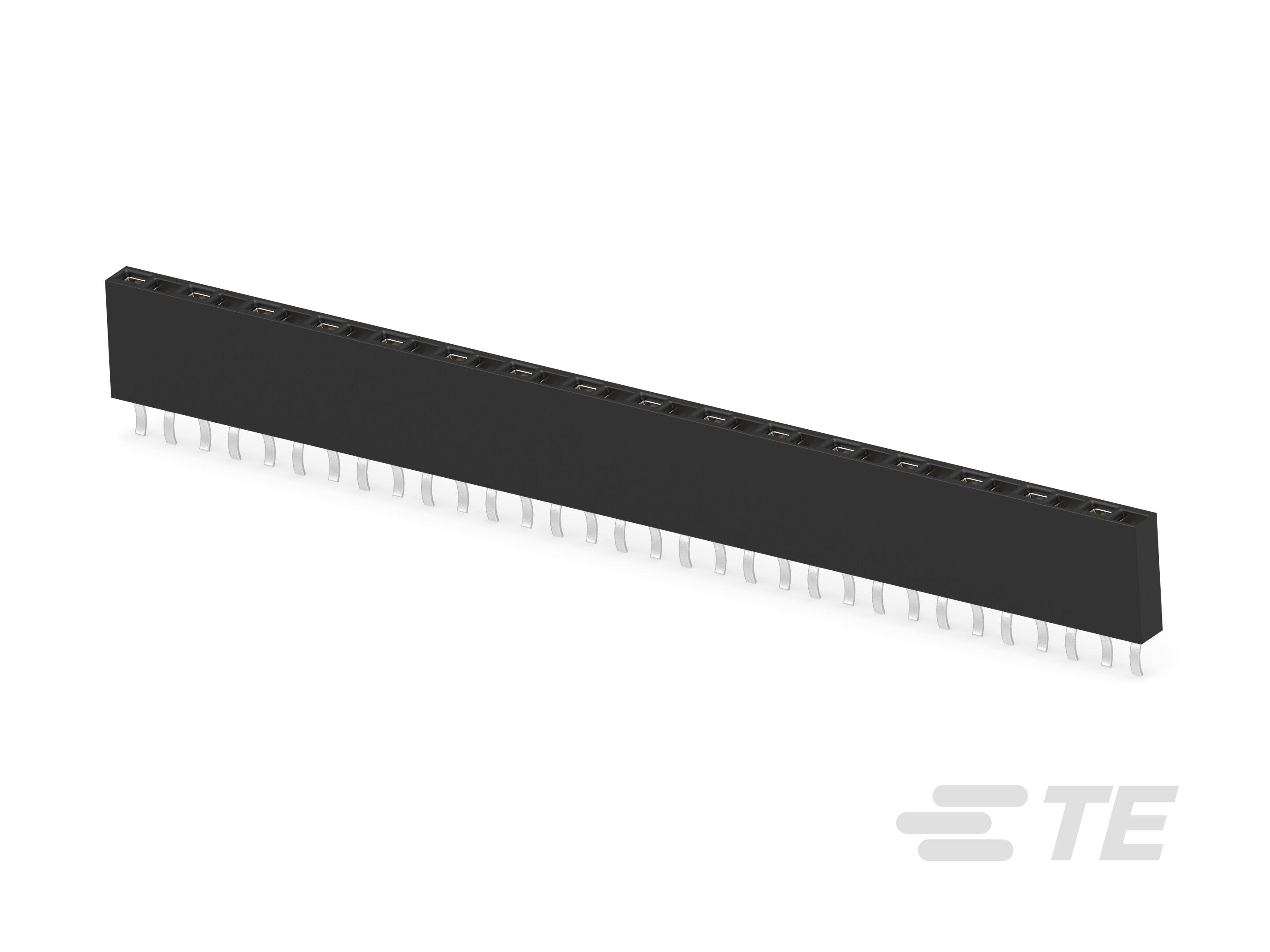

TE Connectivity AMP Connectors 3-215299-2	31.5 µin	0.8 µm	Square	Polyester Glass Filled	Phosphor Bronze			0.335 "	8.51 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle			Gold				118.1 µin	3 µm
TE Connectivity AMP Connectors 1-215299-6	31.5 µin	0.8 µm	Square	Polyester Glass Filled	Phosphor Bronze			0.335 "	8.51 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle		16	Gold				118.1 µin	3 µm
TE Connectivity AMP Connectors 2-215300-0	100 çin	2.54 çm	Square	Polyester Glass Filled	Phosphor Bronze	100 µin	2.54 µm	0.335 "	8.51 mm	Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.122 in	3.1 mm	UL94 V-0			0.1 "	2.54 mm	Kinked Pin Solder	Receptacle		20
TE Connectivity AMP Connectors 216602-5	31.5 µin	0.8 µm	Square	Polyester Glass Filled	Phosphor Bronze				3.2 mm	Right Angle Through Hole	Green	Push-Pull	Female Socket	1	All	Tin	0.126 "	3.2 mm	UL94 V-0			0.1 "	2.54 mm	Solder	Receptacle		5	Gold				118.1 µin	3 µm	0.126 "
