F221V1/4 Series

Catalog

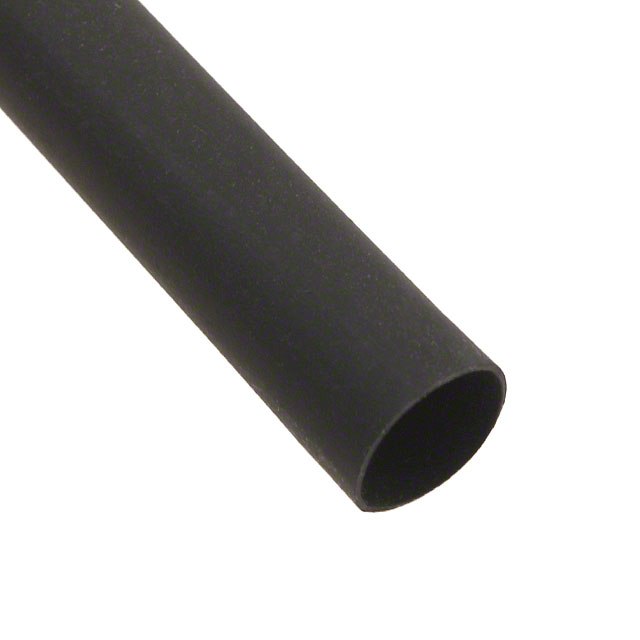

HEATSHRINK 1/4" X 4' BLACK

Part	Shelf Life Start	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Material	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Length	Length	Length
ALPHA WIRE F221V1/4 BK103	Date of Manufacture	1	2	Tubing Flexible	0.025 in	0.64 mm	144 Months	0.25 "	6.35 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	Polyolefin (PO) Irradiated	90 °C	0.125 in	3.18 mm	4 ft	1.22 m	-55 C	135 °C	Black
ALPHA WIRE F221V1/4 BK203	Date of Manufacture	1	2	Tubing Flexible	0.025 in	0.64 mm	144 Months	0.25 "	6.35 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	Polyolefin (PO) Irradiated	90 °C	0.125 in	3.18 mm			-55 C	135 °C	Black	7.6 m 15.2 m 76.2 m 152.4 mm	0.5 ' 25 ft 50 ft 250 ft	6 "
ALPHA WIRE F221V1/4 YL003	Date of Manufacture	1	2	Tubing Flexible	0.025 in	0.64 mm	144 Months	0.25 "	6.35 mm	Flame Retardant Fluid Resistant Heat Resistant	Polyolefin (PO) Irradiated	90 °C	0.125 in	3.18 mm			-55 C	135 °C	Yellow	76.2 m	250 ft
