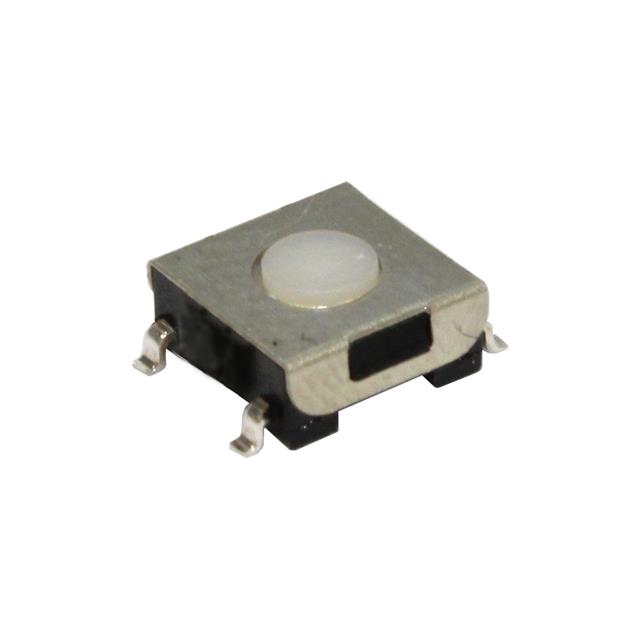

CS11092 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Switch Function	Circuit	Termination Style	Outline [x]	Outline [y]	Operating Force	Illumination	Mounting Type	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Orientation
CIT Relay and Switch CS11092.9	0.25 mm	Polyamide (PA46) Nylon 4/6	Off-Mom	SPST-NO	Gull Wing	6.2 mm	6.2 mm	160 gf	Non-Illuminated	Surface Mount	2.9 mm	0.05 A 50 VDC	85 °C	-40 C	Standard	Top Actuated
CIT Relay and Switch CS11092.6	0.25 mm	Polyamide (PA46) Nylon 4/6	Off-Mom	SPST-NO	Gull Wing	6.2 mm	6.2 mm	160 gf	Non-Illuminated	Surface Mount	2.6 mm	0.05 A 50 VDC	85 °C	-40 C	Standard	Top Actuated
