VOR1121 Series

Catalog

SSR RELAY SPST-NO 200MA 0-250V

Part	Approval Agency	Package / Case	Package / Case	Package / Case	On-State Resistance (Max) [Max]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Supplier Device Package	Voltage - Load [Max]	Output Type	Voltage - Input

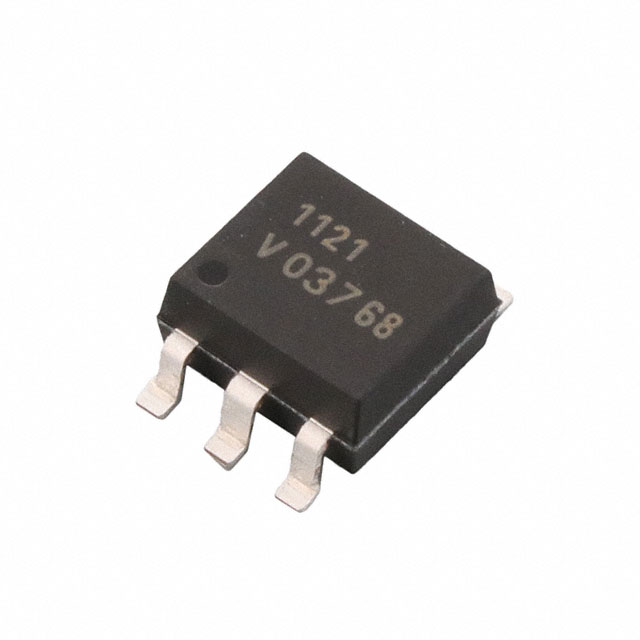

Vishay Semiconductor Opto Division VOR1121B6T	cUL DIN UL	7.62 mm	0.3 in	6-SMD	15 Ohm	200 mA	-40 C	100 °C	Gull Wing	Surface Mount	6-SMD	250 V	AC DC	1.36 VDC

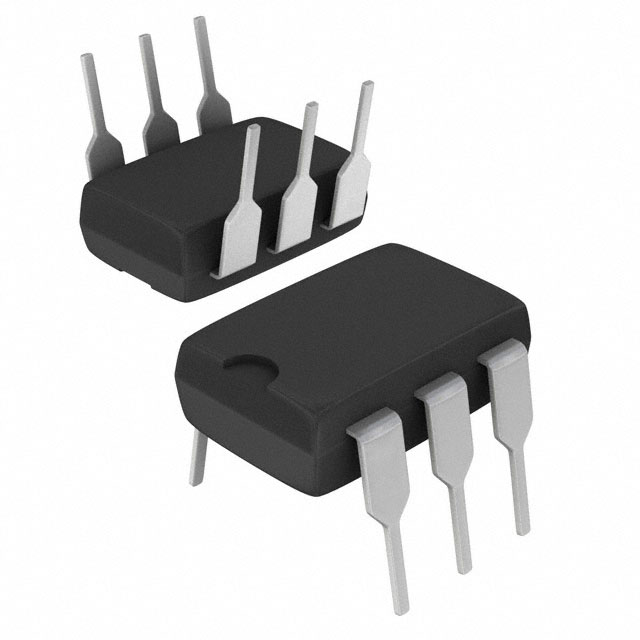

Vishay Semiconductor Opto Division VOR1121A6	cUL DIN UL			6-DIP (0.300" 7.62mm)	15 Ohm	200 mA	-40 C	100 °C	PC Pin	Through Hole	6-DIP	250 V	AC DC	1.36 VDC
Vishay Semiconductor Opto Division VOR1121B6	cUL DIN UL	7.62 mm	0.3 in	6-SMD	15 Ohm	200 mA	-40 C	100 °C	Gull Wing	Surface Mount	6-SMD	250 V	AC DC	1.36 VDC
