SSA-LXB10 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED CBI 5X1.74MM 10-SEG RED VERT

Part	Lens Size [y]	Lens Size [x]	Voltage Rating	Wavelength - Peak	Mounting Type	Color	Millicandela Rating	Current	Lens Type	Configuration	Lens Style	Viewing Angle	Configuration [custom]
Lumex Opto/Components Inc. SSA-LXB10IW-GF	1.74 mm	5 mm	2 V	635 nm	Through Hole	Red (x 10)	8 mcd	30 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °
Lumex Opto/Components Inc. SSA-LXB10YW	1.74 mm	5 mm	2.1 V	585 nm	Through Hole	Yellow	12 mcd	30 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °

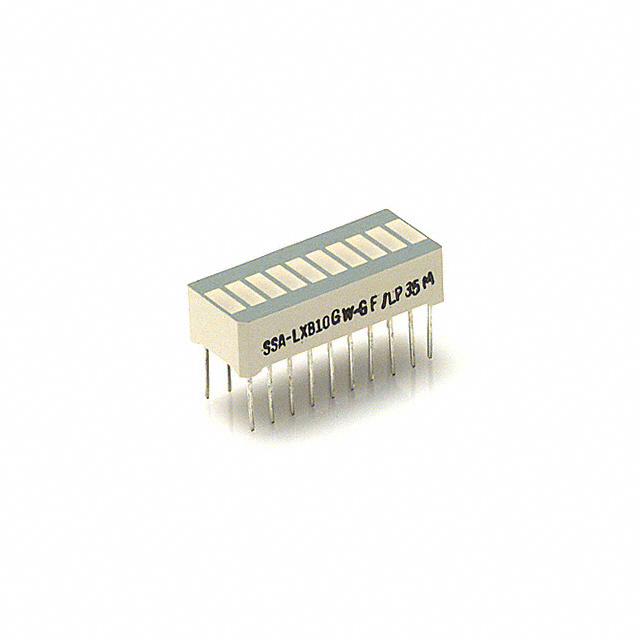

Lumex Opto/Components Inc. SSA-LXB10GW-GF/LP	1.74 mm	5.08 mm		565 nm	Through Hole	Green (x 10)	8 mcd	25 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °

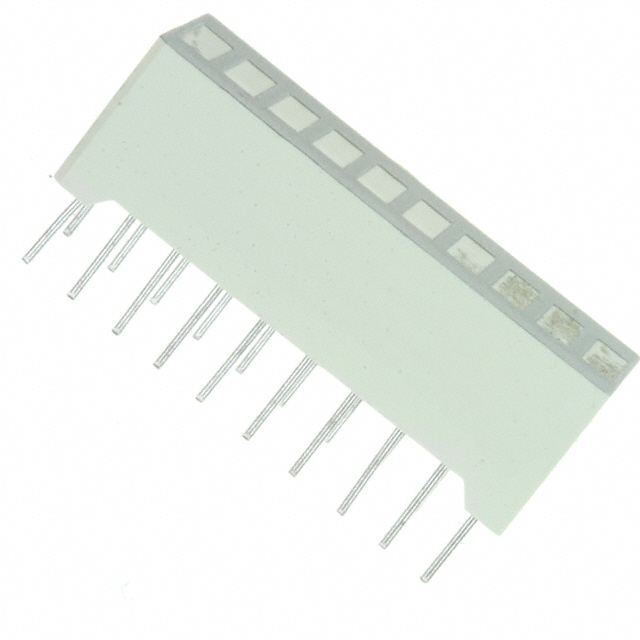

Lumex Opto/Components Inc. SSA-LXB10GW-GF	1.74 mm	5 mm		565 nm	Through Hole	Green (x 10)	8 mcd	25 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °
Lumex Opto/Components Inc. SSA-LXB10YW-RA	1.74 mm	5 mm	2.1 V	585 nm	Right Angle Through Hole	Yellow	8 mcd	30 mA	Diffused White	Bar SIP	Rectangle with Flat Top	160 °	10

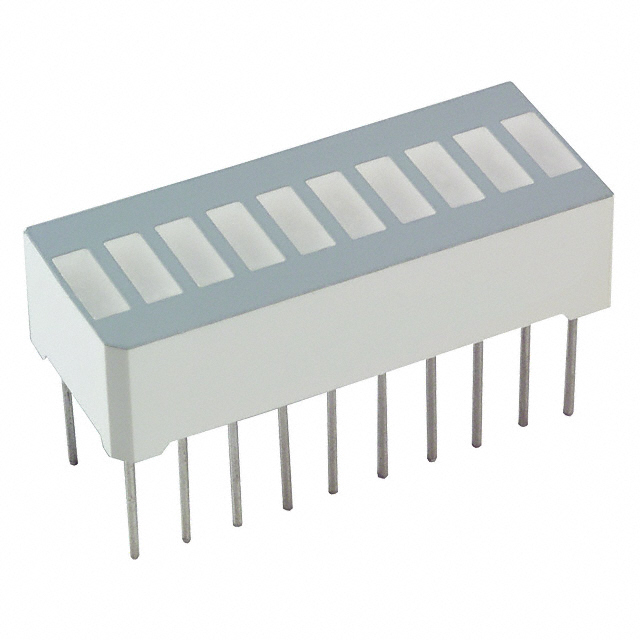

Lumex Opto/Components Inc. SSA-LXB10HW-GF	1.74 mm	5 mm	2.1 V	700 nm	Through Hole	Red (x 10)	4 mcd	30 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °
Lumex Opto/Components Inc. SSA-LXB10IW			2 V	635 nm	Through Hole	Red (x 10)	12 mcd	30 mA	Diffused White	Bar - 10 Wide DIP		160 °
Lumex Opto/Components Inc. SSA-LXB10GW-RA	1.74 mm	5 mm		565 nm	Through Hole	Green	8 mcd	20 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °
Lumex Opto/Components Inc. SSA-LXB10HW-GF/LP	1.74 mm	5 mm	2.35 V	700 nm	Through Hole	Red (x 10)	750 µcd	10 mA	Diffused White	Bar - 10 Wide DIP	Rectangle with Flat Top	160 °
Lumex Opto/Components Inc. SSA-LXB10YW-GF/LP			2.1 V	585 nm	Through Hole	Yellow	8 mcd	30 mA	Diffused White	10 Wide		160 °
