6EP13325 Series
Manufacturer: Siemens
Beta
⌘K

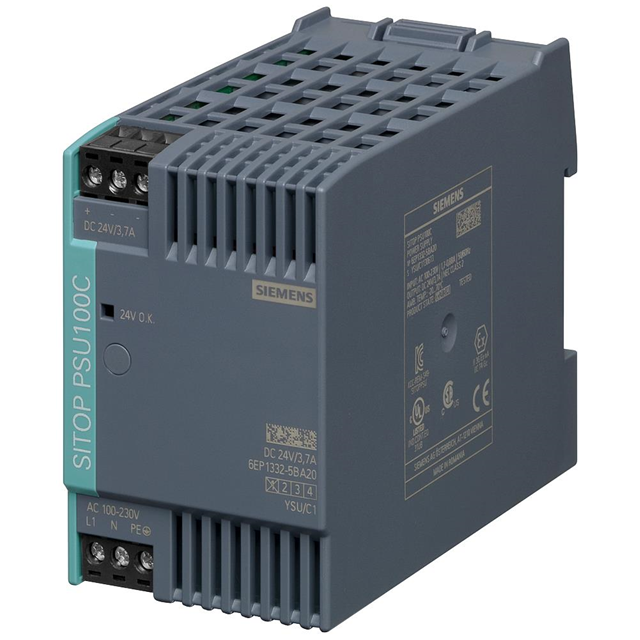

AC/DC DIN RAIL SUPPLY 24V 89W
| Part | Input Type | DC Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Features | Number of Outputs | Standard Number | AC Voltage - Input [Max] | AC Voltage - Input [Min] | DC Voltage - Input (Max) [Max] | Applications | Power (Watts) | Efficiency | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | AC or DC | 110 V | 2.07 in | 80 mm | 100 mm | 3.15 in | 3.94 in | 52.5 mm | 24 V | Adjustable Output IP20 Universal Input | 1 | 60950-1; UL 508 | 230 VAC 264 VAC | 85 VAC 100 VAC | 300 V | Hazardous Locations Industrial ITE (Commercial) | 89 W | 87 % | CB cCSAus CE CSA cUL cULus UL | 70 °C | -20 °C | 3.7 A |
