16TQC Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP TANT POLY 47UF 16V 1411

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.	Type	Tolerance	Manufacturer Size Code	Package / Case	Package / Case	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Panasonic Electronic Components 16TQC47MYFB	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	B2	3528 Metric	1411	47 µF	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	90 mOhm	Surface Mount	0.079 in	2 mm
Panasonic Electronic Components 16TQC33MYFS	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D12		2917 (7343 Metric)	33 ÁF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	40 mOhm	Surface Mount	1.25 mm		0.049 in
Panasonic Electronic Components 16TQC220MD3	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D3L		2917 (7343 Metric)	220 µF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	50 mOhm	Surface Mount				0.118 "	3 mm
Panasonic Electronic Components 16TQC150MYF	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D3L		2917 (7343 Metric)	150 µF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	50 mOhm	Surface Mount				0.118 "	3 mm
Panasonic Electronic Components 16TQC68MYF	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D2		2917 (7343 Metric)	68 µF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	50 mOhm	Surface Mount	0.079 in	2 mm
Panasonic Electronic Components 16TQC100MYF	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D2		2917 (7343 Metric)	100 µF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	50 mOhm	Surface Mount	0.079 in	2 mm

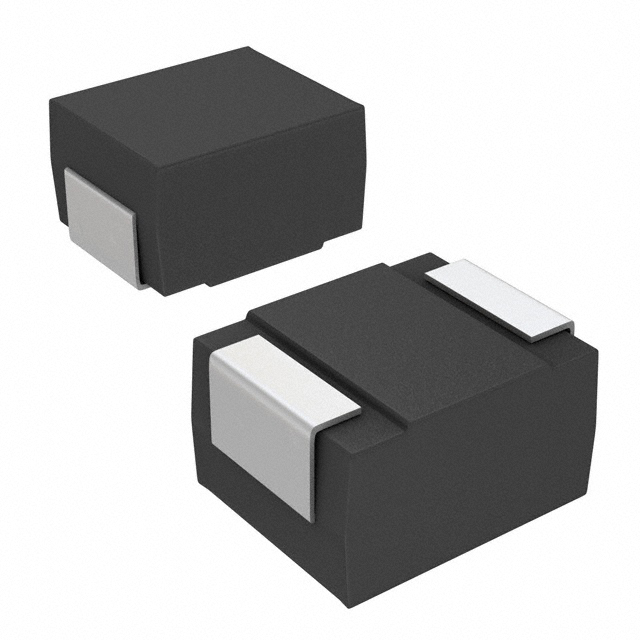

Panasonic Electronic Components 16TQC33MYFB	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	B2	3528 Metric	1411	33 ÁF	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	90 mOhm	Surface Mount	0.079 in	2 mm
Panasonic Electronic Components 16TQC15M	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	B2	3528 Metric	1411	15 µF	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	90 mOhm	Surface Mount	0.079 in	2 mm
Panasonic Electronic Components 16TQC47MYFT	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	D15		2917 (7343 Metric)	47 µF	7.3 mm	0.169 "	4.3 mm	0.287 "	General Purpose	55 mOhm	Surface Mount			0.059 "			1.5 mm
Panasonic Electronic Components 16TQC10M	-55 C	105 ░C	16 V	2000 Hrs	Molded	20 %	B2	3528 Metric	1411	10 µF	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	100 mOhm	Surface Mount				0.083 in	2.1 mm
