DLCBS3 Series

Catalog

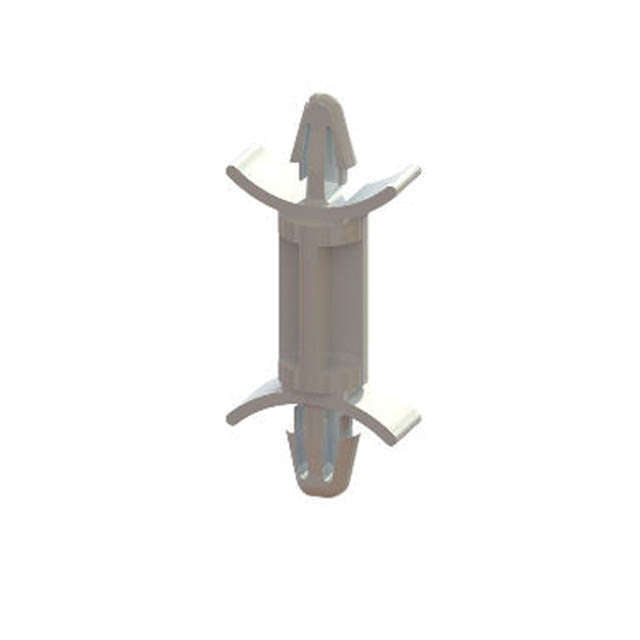

BRD SPT SNAP LOCK NYLON 3/4"

Part	Between Board Height	Between Board Height	Between Board Height	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Material	Mounting Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Length - Overall	Length - Overall	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Features	Holding Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Essentra Components DLCBS3-12-01	19.05 mm	0.75 "	0.75 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	35.9 mm	1.413 in	3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm
Essentra Components DLCBS3-8-01	12.7 mm	0.5 in	0.5 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	29.5 mm	1.161 in
Essentra Components DLCBS3-4-19	0.25 in		6.35 mm	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	23.2 mm	0.913 "
Essentra Components DLCBS3-14-19	22.23 mm	0.875 in	0.875 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	39 mm	1.535 "	3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm
Essentra Components DLCBS3-14-01	22.23 mm	0.875 in	0.875 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	39 mm	1.535 "	3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm
Essentra Components DLCBS3-10-19	15.88 mm	5 8	0.625 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	32.7 mm	1.287 in
Essentra Components DLCBS3-10-01	15.88 mm	5 8	0.625 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	32.7 mm	1.287 in
Essentra Components DLCBS3-6-19	9.53 mm	0.375 "	0.375 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	26.3 mm	1.035 in
Essentra Components DLCBS3-12-19	19.05 mm	0.75 "	0.75 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	35.9 mm	1.413 in	3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm
Essentra Components DLCBS3-6-01	9.53 mm	0.375 "	0.375 in	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm			3.96 mm	5 32"	0.156 in	Winged	Snap Lock	0.1875 in	0.187 in	4.75 mm	26.3 mm	1.035 in
