AMPLIMITE AM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

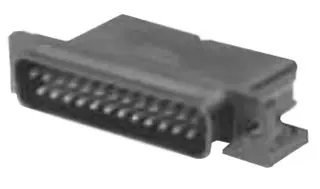

AMP III RCPT 25P RA 590 FFSCRLK/BDLK
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish | Features | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Rows [custom] | Contact Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Style | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Positions | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | -55 C | 105 ░C | 125 VDC | Gold | Board Lock | Right Angle Through Hole | B DB | 3 | 2 | Signal | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Solder | D-Sub | 0.59 in | 14.99 mm | UL94 V-0 | 25 | 4-40 Mating Side Female Screwlock | |
 TE Connectivity AMP Connectors | Brass | Black | -55 C | 105 ░C | 125 VDC | Gold | Right Angle Through Hole | B DB | 3 | 2 | Signal | Plug Male Pins | 30 Áin | 0.76 Ám | Solder | D-Sub | 0.59 in | 14.99 mm | UL94 V-0 | 25 | 4-40 Mating Side Female Screwlock | 6 A |
