3106-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

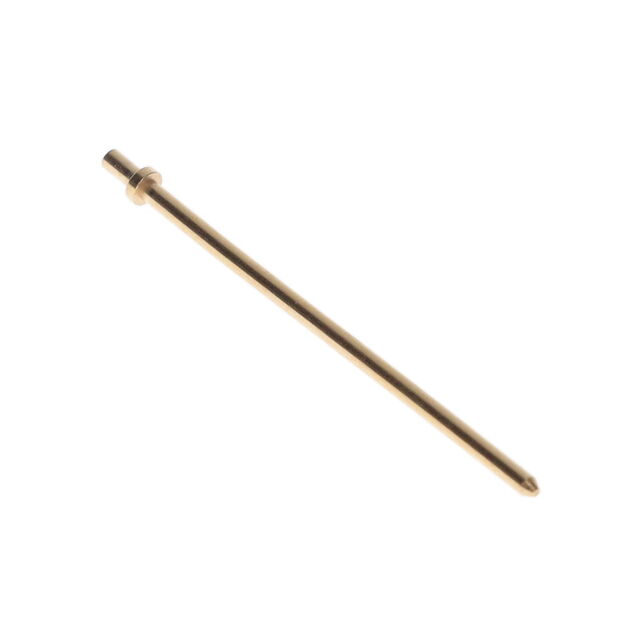

CONN PC PIN CIRC .040DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Overall | Length - Overall | Board Thickness | Board Thickness | Terminal Style | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Swage | 1.77 mm | 0.07 in | 0.043 in | 1.09 mm | Gold | Through Hole | 2.08 mm | 0.082 " | 50 µin | 1.27 µm | PC Pin | 27.99 mm | 1.102 in | 1.57 mm | 0.062 " | Single End | Non-Insulated | 1 in | 25.4 mm | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Swage | 1.77 mm | 0.07 in | 0.043 in | 1.09 mm | Gold | Through Hole | 2.08 mm | 0.082 " | 20 µin | 0.51 µm | PC Pin | 27.99 mm | 1.102 in | 1.57 mm | 0.062 " | Single End | Non-Insulated | 1 in | 25.4 mm | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Swage | 1.77 mm | 0.07 in | 0.043 in | 1.09 mm | Tin-Lead | Through Hole | 2.08 mm | 0.082 " | 200 Áin | 5.08 Ám | PC Pin | 27.99 mm | 1.102 in | 1.57 mm | 0.062 " | Single End | Non-Insulated | 1 in | 25.4 mm | Brass Alloy |
