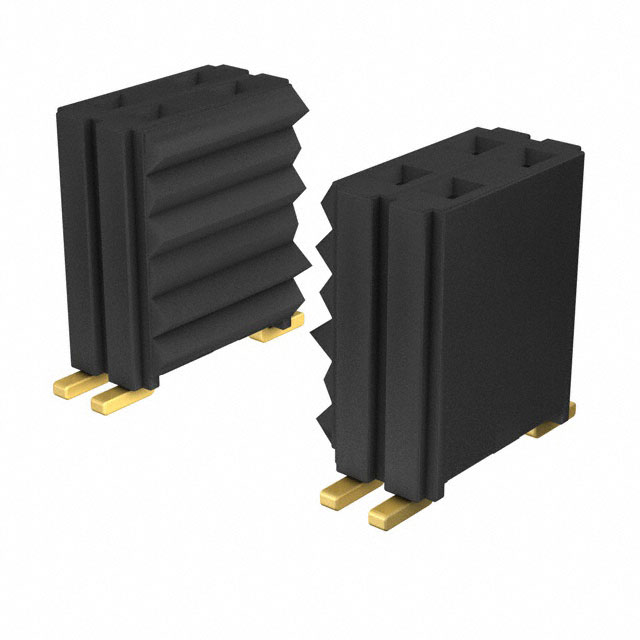

M52-515 Series

Catalog

4+4 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Part	Applications	Contact Shape	Contact Material	Insulation Material	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Number of Rows [custom]	Number of Positions Loaded	Mated Stacking Heights	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color

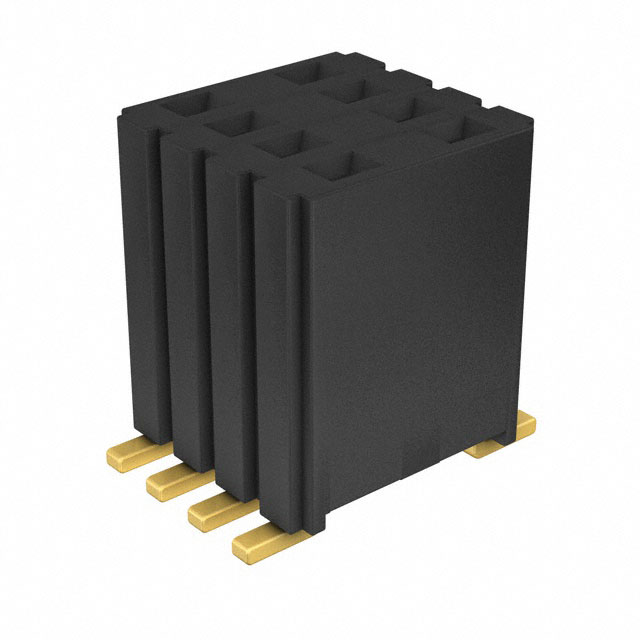

Harwin Inc. M52-5150445	General Purpose Medical Telecommunications	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	UL94 V-0	Surface Mount	1.27 mm	0.05 in	Receptacle	5.69 mm	0.224 in	Gold	2	All	8.5 mm 9.77 mm	Push-Pull	-40 C	105 ░C	8	Female Socket	Solder	0.1 in	2.54 mm	Black

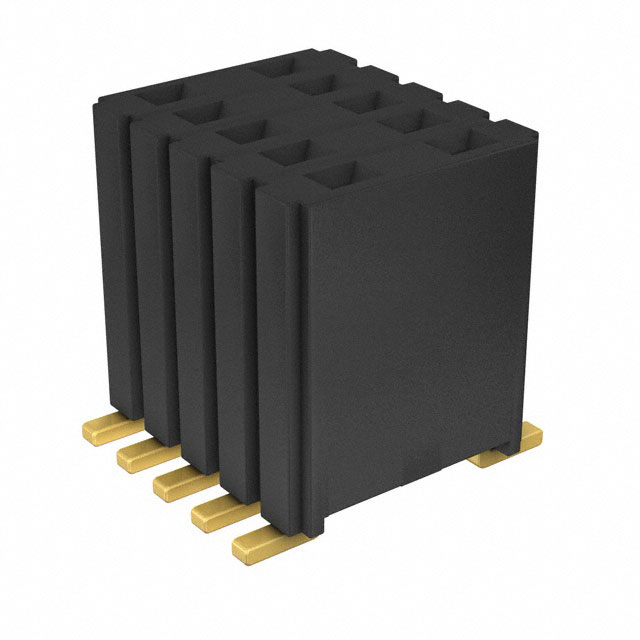

Harwin Inc. M52-5150545	General Purpose Medical Telecommunications	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	UL94 V-0	Surface Mount	1.27 mm	0.05 in	Receptacle	5.69 mm	0.224 in	Gold	2	All	8.5 mm 9.77 mm	Push-Pull	-40 C	105 ░C	10	Female Socket	Solder	0.1 in	2.54 mm	Black

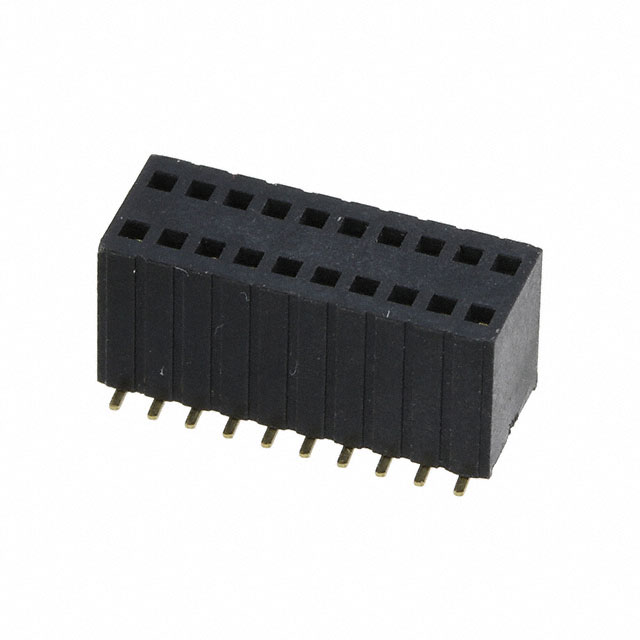

Harwin Inc. M52-5151045	General Purpose Medical Telecommunications	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	UL94 V-0	Surface Mount	1.27 mm	0.05 in	Receptacle	5.69 mm	0.224 in	Gold	2	All	8.5 mm 9.77 mm	Push-Pull	-40 C	105 ░C	20	Female Socket	Solder	0.1 in	2.54 mm	Black
Harwin Inc. M52-5151245	General Purpose Medical Telecommunications	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	UL94 V-0	Surface Mount	1.27 mm	0.05 in	Receptacle	5.69 mm	0.224 in	Gold	2	All	8.5 mm 9.77 mm	Push-Pull	-40 C	105 ░C	24	Female Socket	Solder	0.1 in	2.54 mm	Black
