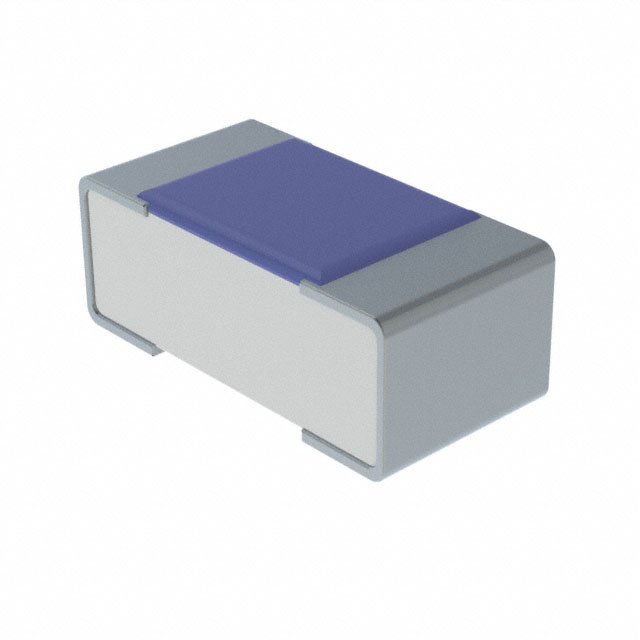

RK73G1E Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 28.7 OHM 1% 1/10W 0402

...

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Temperature Coefficient	Power (Watts)	Power (Watts)	Package / Case	Tolerance	Number of Terminations [custom]	Supplier Device Package	Resistance	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Composition
KOA Speer Electronics, Inc. RK73G1ETTP28R7F	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	1 %	2	0402	28.7 Ohms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ERTTP1500D	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.5 %	2	0402	150 Ohms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ERTTP2212F	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	1 %	2	0402	22.1 kOhms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ETTP6492D	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.5 %	2	0402	64.9 kOhms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ERTTP1691F	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	1 %	2	0402	1.69 kOhms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ERTTP3482D	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.5 %	2	0402	34.8 kOhms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ERTTP4640D	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.5 %	2	0402	464 Ohms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ETTP2743C	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.25 %	2	0402	274 kOhms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ETTP2003D	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.5 %	2	0402	200000 Ohms	AEC-Q200	155 C	-55 C	Thick Film
KOA Speer Electronics, Inc. RK73G1ETTP4751C	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200	50 ppm/░C	0.1 W	0.1 W	0402 (1005 Metric)	0.25 %	2	0402	4.75 kOhms	AEC-Q200	155 C	-55 C	Thick Film
