S-1315 Series
Manufacturer: ABLIC Inc.
Beta
⌘K

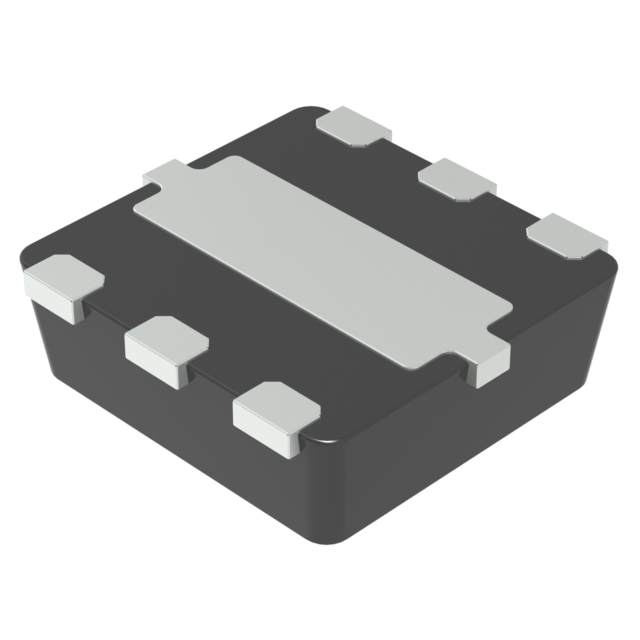

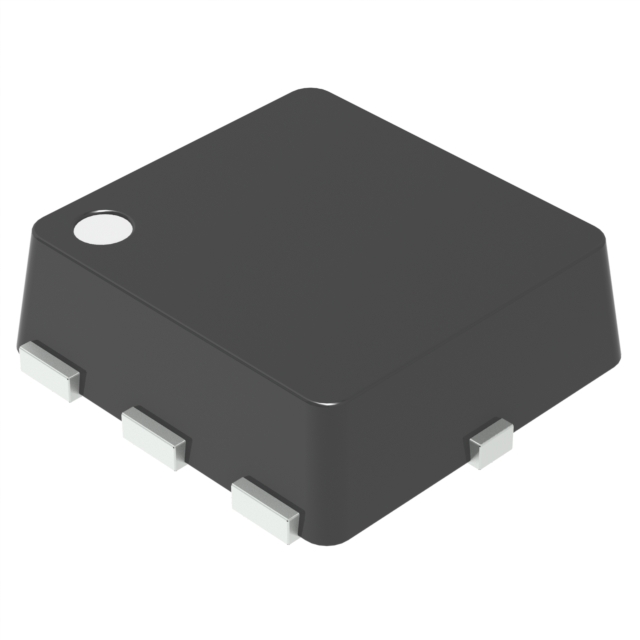

IC REG LINEAR 3.1V 200MA HSNT6-B
| Part | PSRR | Control Features | Current - Supply (Max) [Max] | Current - Quiescent (Iq) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Supplier Device Package | Voltage Dropout (Max) | Protection Features | Number of Regulators | Voltage - Input (Max) [Max] | Current - Output | Mounting Type | Output Configuration | Voltage - Output (Min/Fixed) [Min] | Voltage Dropout (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | 6-SMD Flat Leads Exposed Pad | 85 C | -40 ¯C | 3.1 V | HSNT-6-B | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | ||
 ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | 6-SMD Flat Leads Exposed Pad | 85 C | -40 ¯C | HSNT-6-B | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | 3.7 V | ||
 ABLIC Inc. | 60 dB | Enable | 13 µA | 1 µA | 6-SMD Flat Leads Exposed Pad | 85 C | -40 ¯C | 2.1 V | HSNT-6-B | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | 0.344 V | ||
 ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | SC-74A SOT-753 | 85 C | -40 ¯C | 4.2 V | SOT-23-5 | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | ||
ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | SC-74A SOT-753 | 85 C | -40 ¯C | 3.4 V | SOT-23-5 | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | ||
ABLIC Inc. | 65 dB | Enable | 13 µA | 1 µA | SC-74A SOT-753 | 85 C | -40 ¯C | 1.1 V | SOT-23-5 | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | 0.744 V | ||
ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | 6-SMD Flat Leads Exposed Pad | 85 C | -40 ¯C | 3 V | HSNT-6-B | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | ||
ABLIC Inc. | 60 dB | Enable | 13 µA | 1 µA | SC-74A SOT-753 | 85 C | -40 ¯C | 1.5 V | SOT-23-5 | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | |||
ABLIC Inc. | 55 dB | Enable | 13 µA | 1 µA | 6-SMD Flat Leads Exposed Pad | 85 C | -40 ¯C | HSNT-6-B | 0.28 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive | 3.5 V | ||
ABLIC Inc. | 65 dB | Enable | 13 µA | 1 µA | SC-74A SOT-753 | 85 C | -40 ¯C | 1.2 V | SOT-23-5 | 0.665 V | Over Current | 1 | 5.5 V | 0.2 A | Surface Mount | Positive |
