Key Features

• Multi-pole and multi-positions

• Stainless steel actuator

• IP67 option available

Description

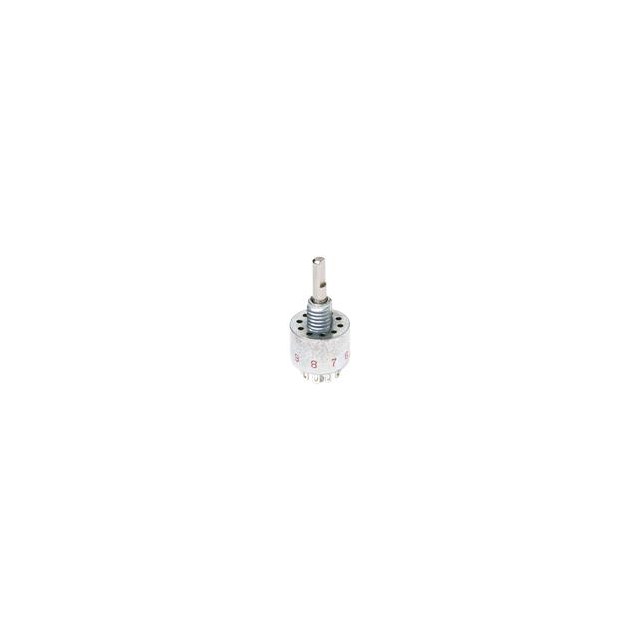

C&K’s M series half-inch rotary switch is available with multi-pole and multi-positions. With a stainless-steel actuator, non-shorting contacts, panel and PCB mounting and optional IP67 compliance, the M series is used most often in test, industrial and medical equipment.
