CFM40M150 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

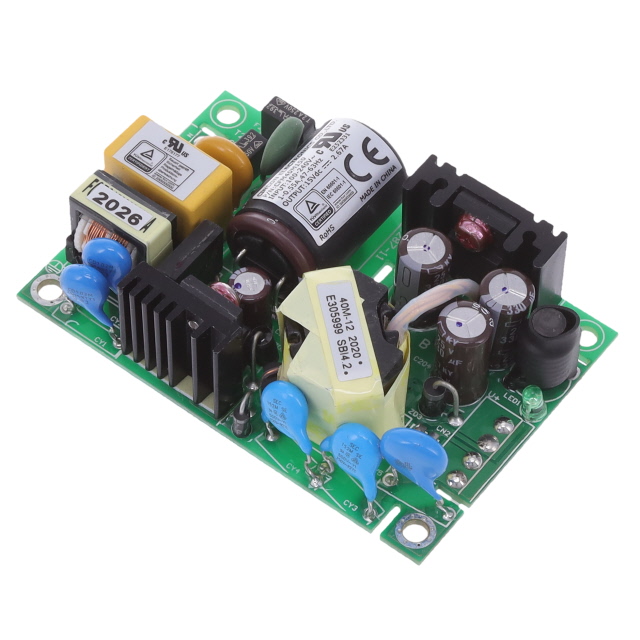

AC/DC CONVERTER 15V 40W
| Part | Load Regulation | Line Regulation | Applications | Package / Case | Approval Agency | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Mounting Type | Voltage - Output 1 | Features | Power (Watts) | Number of Outputs | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 0.5 % | ITE (Commercial) Medical | 6-DIP Module | CE cURus FCC TUV | 60601-1 60950-1 | 76.2 mm | 0.98 in | 3 " | 50.8 mm | 25 mm | 2 in | 2.67 A | 70 °C | -20 °C | 264 VAC | 90 VAC | Open Frame | Through Hole | 15 V | Universal Input | 40 W | 1 | 87 % |
