R40476 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
TERMINATION: SMA F 6 GHZ 50W
| Part | Dielectric Material | Body Material | Impedance | Contact Material | Connector Style | Contact Finish | Mounting Type | Connector Type | Frequency - Max [Max] | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|

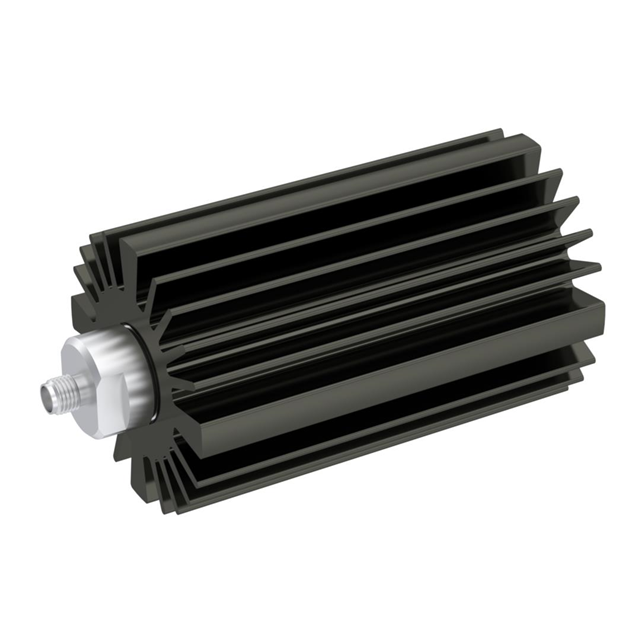

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 50 Ohms | Beryllium Copper | SMA | Gold | Cap Free Hanging | Female Socket Jack | 6000 MHz | |

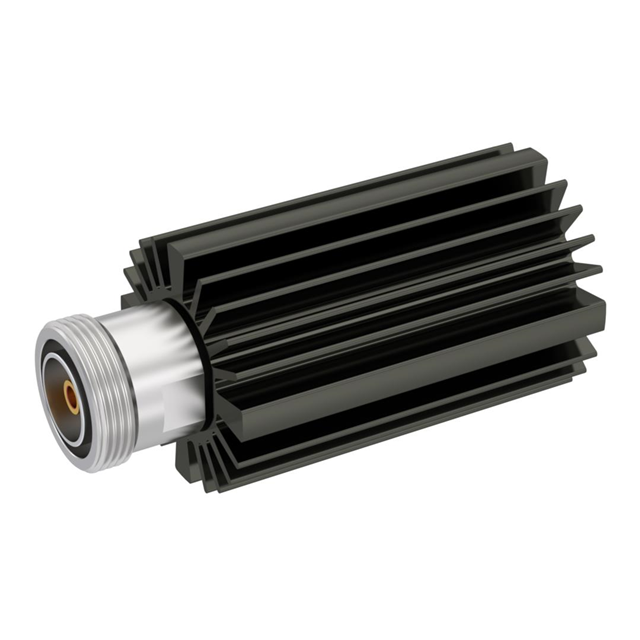

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Beryllium Copper | 7/16 DIN | Gold | Cap Free Hanging | Female Socket Jack | 6000 MHz | White Bronze |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 50 Ohms | Beryllium Copper | TNC | Gold | Cap Free Hanging | Plug Male Pin | 6000 MHz | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Beryllium Copper | 4.3/10 | Gold | Cap Free Hanging | Plug Male Pin | 6000 MHz | Nickel |

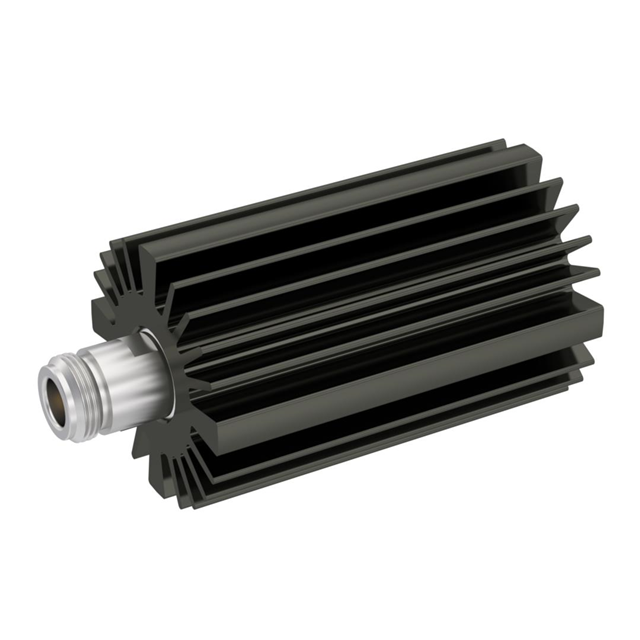

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Beryllium Copper | N Type | Gold | Cap Free Hanging | Female Socket Jack | 6000 MHz | White Bronze |

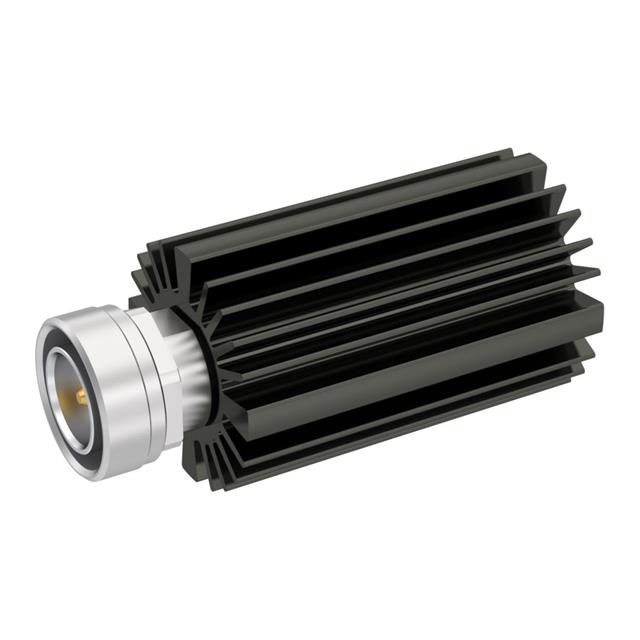

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Beryllium Copper | 7/16 DIN | Gold | Cap Free Hanging | Plug Male Pin | 6000 MHz | White Bronze |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Beryllium Copper | 4.3/10 | Gold | Cap Free Hanging | Female Socket Jack | 6000 MHz | Nickel |

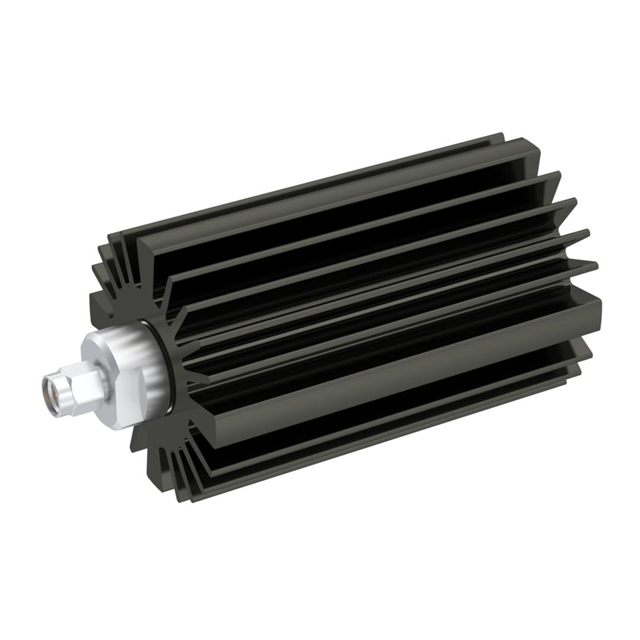

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 50 Ohms | Beryllium Copper | SMA | Gold | Cap Free Hanging | Plug Male Pin | 6000 MHz | |

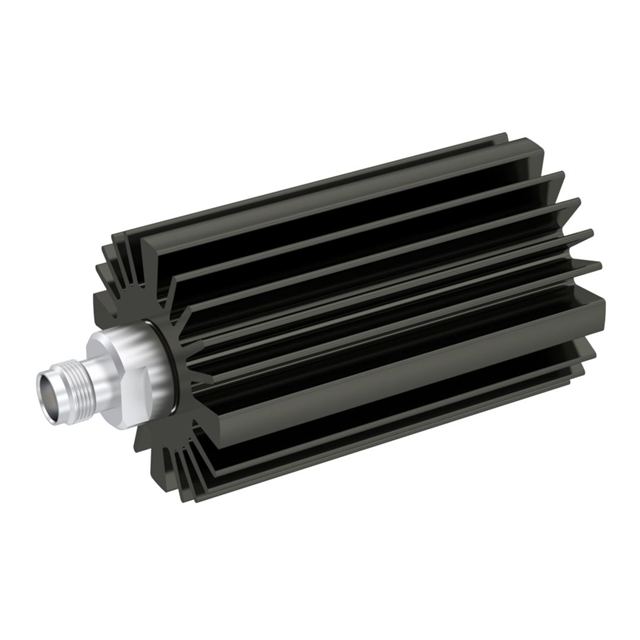

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 50 Ohms | Beryllium Copper | TNC | Gold | Cap Free Hanging | Female Socket Jack | 6000 MHz |
