GTC16 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 32POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Material	Material Flammability Rating	Voltage Rating	Contact Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Fastening Type	Number of Positions Loaded	Style	Shrouding	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Rows

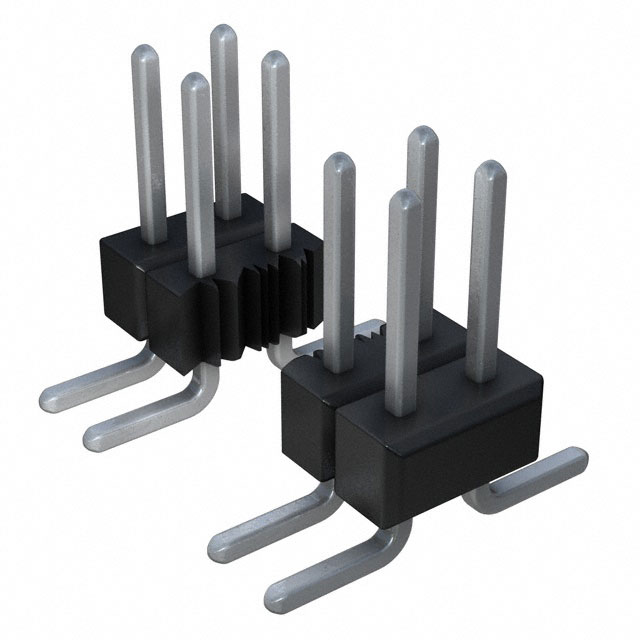

Sullins Connector Solutions GTC16DABN-M30	0.1 "	2.54 mm	Square	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Solder	Phosphor Bronze	UL94 V-0	600 V	Male Pin	Tin-Lead	-65 ░C	125 °C	Black	0.1 in	2.54 mm	3 A	Header	Tin-Lead	0.1 in	2.54 mm	Surface Mount	Push-Pull	All	Board to Board Cable	Unshrouded	2	100 çin	2.54 çm
Sullins Connector Solutions GTC16DFBN-M30	0.1 "	2.54 mm	Square	0.318 in	8.08 mm	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Solder	Phosphor Bronze	UL94 V-0	600 V	Male Pin	Tin-Lead	-65 ░C	125 °C	Black	0.1 in	2.54 mm	3 A	Header	Tin-Lead	0.1 in	2.54 mm	Surface Mount	Push-Pull	All	Board to Board Cable	Unshrouded	2	100 çin	2.54 çm
Sullins Connector Solutions GTC16SBSN-M89	0.1 "	2.54 mm	Square	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Solder	Phosphor Bronze	UL94 V-0	600 V	Male Pin	Tin-Lead	-65 ░C	125 °C	Black			3 A	Header	Tin-Lead	0.14 in	3.56 mm	Right Angle Surface Mount	Push-Pull	All	Board to Board Cable	Unshrouded		100 çin	2.54 çm	16	1
Sullins Connector Solutions GTC16SABN-M30	0.1 "	2.54 mm	Square	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Solder	Phosphor Bronze	UL94 V-0	600 V	Male Pin	Tin-Lead	-65 ░C	125 °C	Black			3 A	Header	Tin-Lead	0.1 in	2.54 mm	Surface Mount	Push-Pull	All	Board to Board Cable	Unshrouded		100 çin	2.54 çm	16	1
