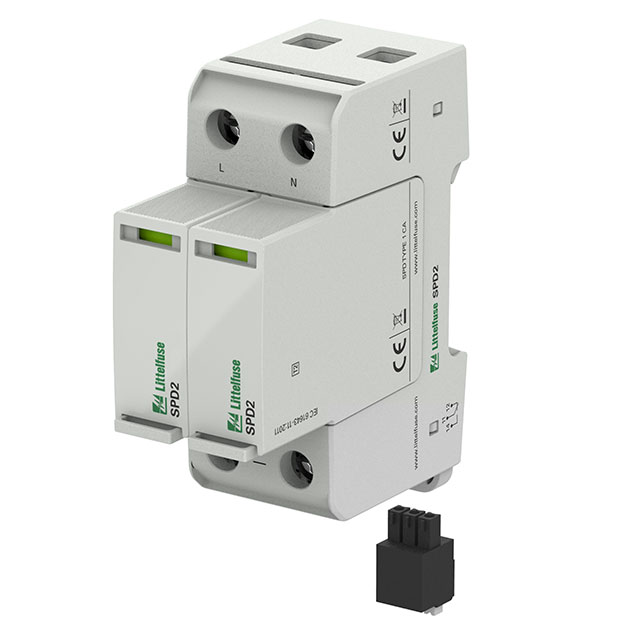

SPD2-480-2P0-R Series

"SPD,DIN RAIL,TYPE 2,2P0,480V,RC"

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

"SPD,DIN RAIL,TYPE 2,2P0,480V,RC"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Voltage - Protection Level (VP) (2416)	Mounting Type	Form	Number of Poles	Current - Discharge (Max) (8/20µS) [Max]	Current - Short Circuit Rating (SCCR)	Current - Discharge (Nom) (8/20µS)	Type	Voltage - Continuous Operating (Max) (MCOV) [Max]	Voltage - Protection Rating (VPR)
Littelfuse/Commercial Vehicle Products SPD2-480-2P0-R	-40 °C	80 C	Remote Signaling Contacts Thermally Protected	cURus UL VDE	2.3 kV	DIN Rail	Module Only	2	50 kA	200 kA	20 kA	Type 1 Type 2	480 VAC	1.5 kV

Catalog

"SPD,DIN RAIL,TYPE 2,2P0,480V,RC"

Description

Surge protection devices (SPDs) provide equipment protection from transient overvoltage events lasting micro-seconds. By limiting the overvoltage to the equipment during these events, costly damage and downtime can be mitigated. The surge protection devices for the 2+0 configuration are available for 120 V to 600 V nominal voltage sub-distribution board applications.
