833-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

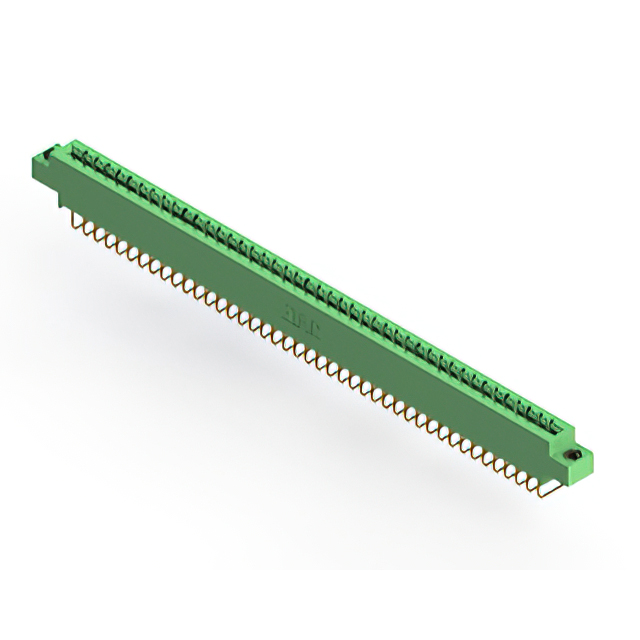

CONN EDGE SGL FMALE 43POS 0.156
| Part | Termination Rows | Material - Insulation | Mounting Type | Card Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Pitch | Pitch | Gender | Read Out | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.156 " | 3.96 mm | Wire Wrap | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.116 " | 2.95 mm | Solder | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.128 " | 3.25 mm | Wire Wrap | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | Solder | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.156 " | 3.96 mm | Wire Wrap | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.128 " | 3.25 mm | Wire Wrap | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | 0.116 " | 2.95 mm | Wire Wrap | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | Wire Wrap | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Gold | 0.25 Ám | 10 Áin | 43 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 43 | 3.96 mm | 0.156 in | Female | Single | 1 | 125 °C | -40 C | Green | Copper Alloy | Cantilever | Solder | 4-40 Threaded Insert Top Mount Opening |
