SA32604 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

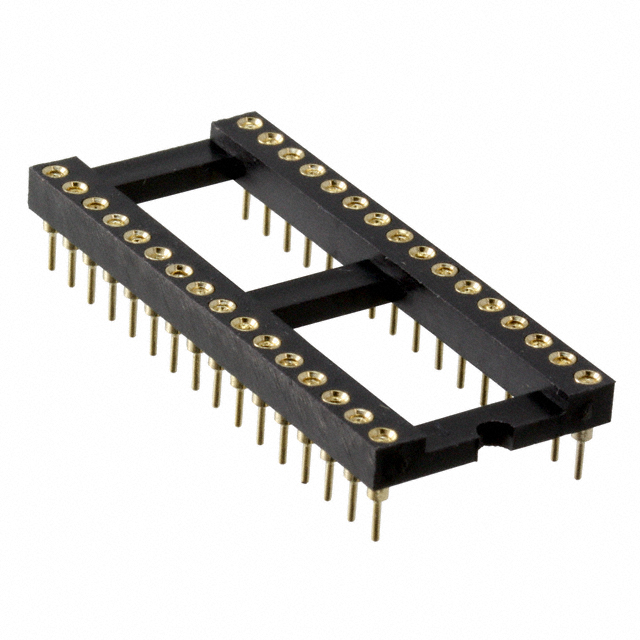

CONN IC DIP SOCKET 32POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material - Post [custom] | Features | Contact Material - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions or Pins (Grid) | Pitch - Mating | Pitch - Mating | Type [custom] | Type [custom] | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Housing Material | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | -40 C | 105 ░C | Through Hole | Brass | Open Frame | Beryllium Copper | Flash | Gold | 32 | 0.1 " | 2.54 mm | 15.24 mm | 0.6 in | DIP | 2.03 µm | 80 µin | 0.1 in | 2.54 mm | Glass Filled Polyester Thermoplastic | Gold | Solder |
