EEH-ZK Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYBRID 39UF 20% 35V SMD

Part	ESR (Equivalent Series Resistance)	Type	Capacitance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Lifetime @ Temp.	Voltage - Rated	Applications	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

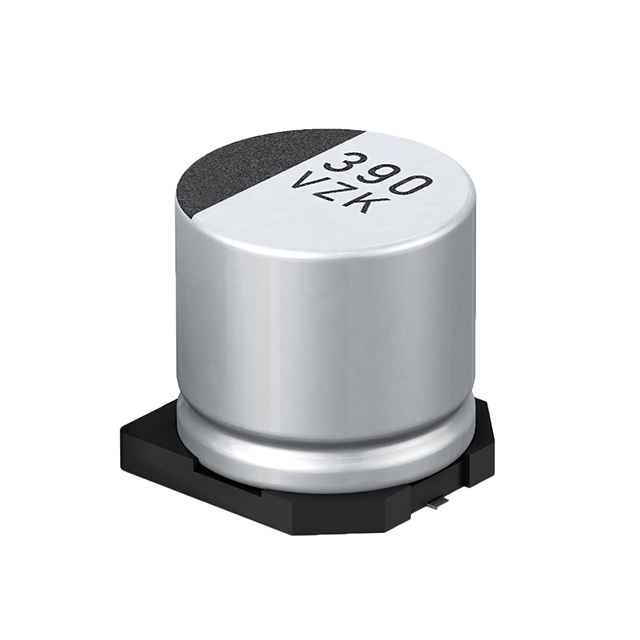

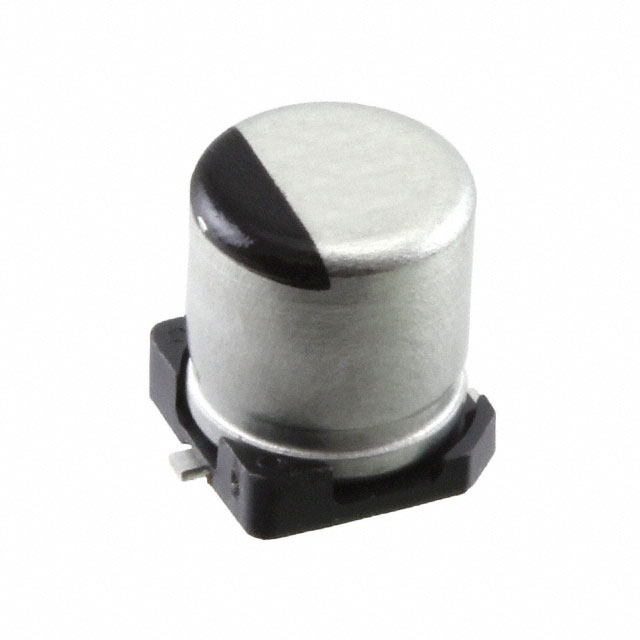

Panasonic Industrial Automation Sales EEH-ZK1V390UR	100 mOhms	Hybrid	39 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	5 mm	0.197 "	112.5 mA	5.3 mm	0.209 in	5.3 mm	0.209 in	0.24 in	6.1 mm	750 mA	4000 Hrs	35 V	Automotive	Radial Can - SMD
Panasonic Industrial Automation Sales EEH-ZK1V330R	100 mOhms	Hybrid	33 ÁF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	5 mm	0.197 "	112.5 mA	5.3 mm	0.209 in	5.3 mm	0.209 in	0.24 in	6.1 mm	750 mA	4000 Hrs	35 V	Automotive	Radial Can - SMD
Panasonic Industrial Automation Sales EEH-ZK1E471V	20 mOhms	Hybrid	470 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	10 mm	0.394 in	420 mA	10.3 mm	0.406 in	10.3 mm	0.406 "			2.8 A	4000 Hrs	25 VDC	Automotive	Radial Can - SMD	0.413 in	10.5 mm

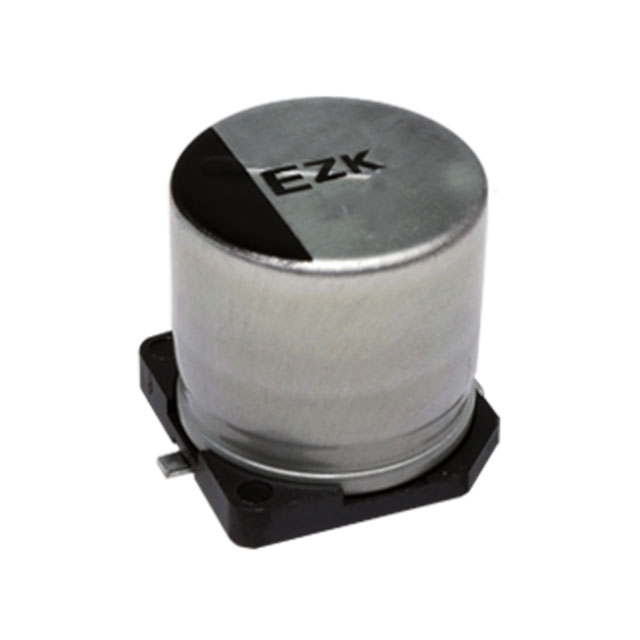

Panasonic Industrial Automation Sales EEH-ZK1E561UV	20 mOhms	Hybrid	560 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	10 mm	0.394 in	420 mA	10.3 mm	0.406 in	10.3 mm	0.406 "			2.8 A	4000 Hrs	25 VDC	Automotive	Radial Can - SMD	0.425 in	10.8 mm
Panasonic Industrial Automation Sales EEH-ZK1V391UP	20 mOhms	Hybrid	390 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	10 mm	0.394 in	420 mA	10.3 mm	0.406 in	10.3 mm	0.406 "			2.8 A	4000 Hrs	35 V	Automotive	Radial Can - SMD	0.413 in	10.5 mm

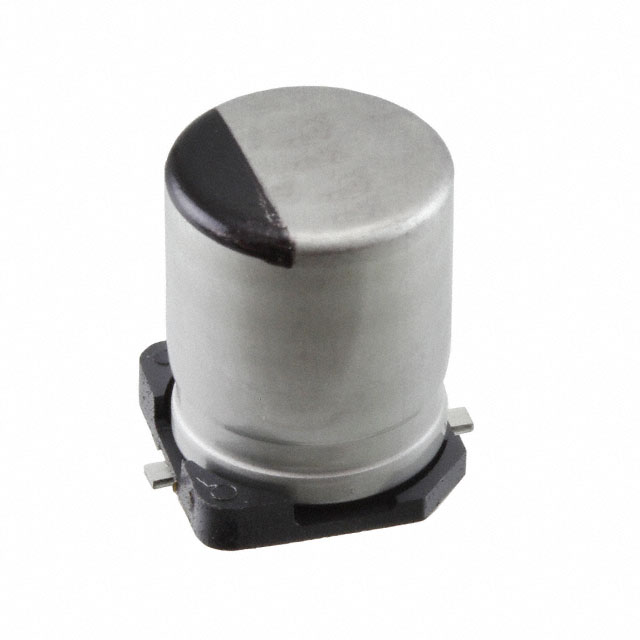

Panasonic Industrial Automation Sales EEH-ZK1E331UV	27 mOhms	Hybrid	330 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	8 mm	0.315 "	300 mA	8.3 mm	0.327 "	8.3 mm	0.327 in			2 A	4000 Hrs	25 VDC	Automotive	Radial Can - SMD	0.425 in	10.8 mm
Panasonic Industrial Automation Sales EEH-ZK1E271V	27 mOhms	Hybrid	270 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	8 mm	0.315 "	300 mA	8.3 mm	0.327 "	8.3 mm	0.327 in			2 A	4000 Hrs	25 VDC	Automotive	Radial Can - SMD	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEH-ZK1V680UV	60 mOhms	Hybrid	68 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	6.3 mm	0.248 in	180 mA	6.6 mm	0.26 in	6.6 mm	0.26 in	0.252 "		1.2 A	4000 Hrs	35 V	Automotive	Radial Can - SMD		6.4 mm
Panasonic Industrial Automation Sales EEH-ZK1V181P	27 mOhms	Hybrid	180 çF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	8 mm	0.315 "	300 mA	8.3 mm	0.327 "	8.3 mm	0.327 in			2 A	4000 Hrs	35 V	Automotive	Radial Can - SMD	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEH-ZK1V221UP	27 mOhms	Hybrid	220 µF	AEC-Q200	-55 °C	125 °C	Surface Mount	20 %	8 mm	0.315 "	300 mA	8.3 mm	0.327 "	8.3 mm	0.327 in			2 A	4000 Hrs	35 V	Automotive	Radial Can - SMD	0.413 in	10.5 mm
