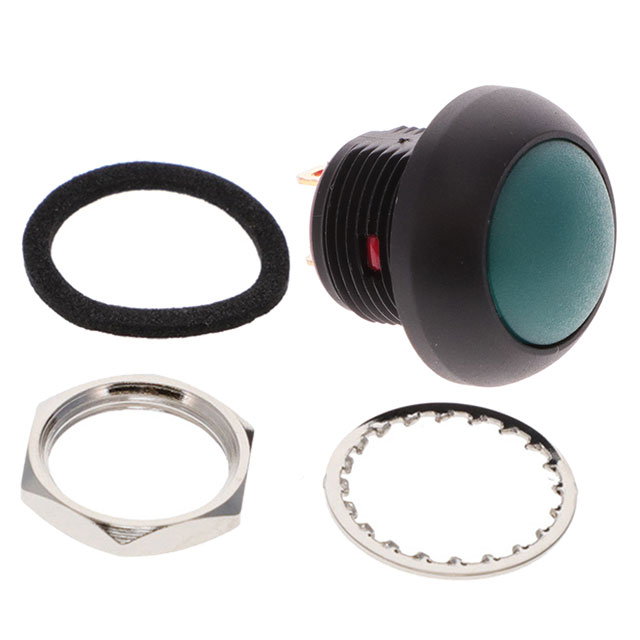

ESANMD5G Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPST-NO 125MA 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Type | Switch Function | Current Rating (Amps) | Actuator Type | Voltage Rating - AC | Ingress Protection | Color - Actuator/Cap | Circuit | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1000000 Cycles | 500000 Cycles | No Marking | Standard | Off-Mom | 125 mA | Button Round | 125 V | IP67 - Dust Tight Waterproof | Green | SPST-NO | Panel Mount Front | Solder Lug | 85 °C | -40 C | 13.6 mm | 50 VDC |
