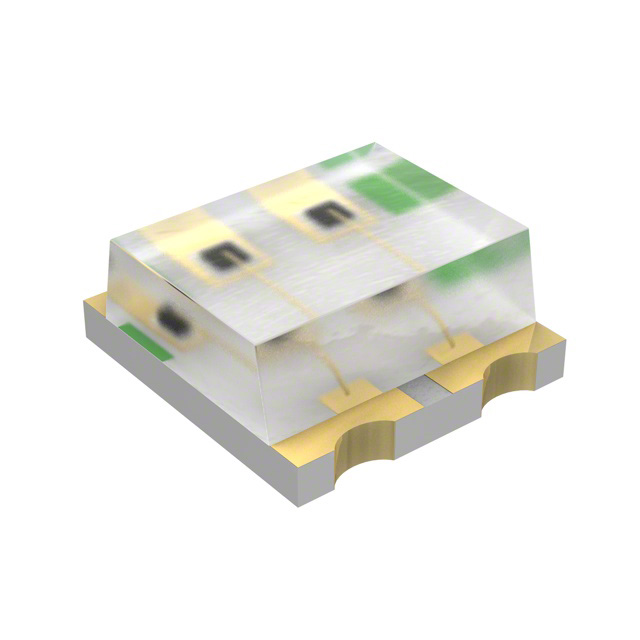

SML-LX0606 Series

Catalog

LED GRN/YLW CLEAR SMD

Part	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Lens Color	Millicandela Rating	Height (Max) [z]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Transparency	Lens Size [x]	Lens Size [y]	Package / Case	Lens Style	Mounting Type	Color	Configuration	Height (Max) [z]	Millicandela Rating	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SML-LX0606YGC-TR	1.5 mm	1.6 mm	565 nm 585 nm	Colorless	10 mcd 10 mcd	0.7 mm	120 °	2.1 V 2.2 V	20 mA 20 mA	Clear	1.1 mm	1.5 mm	0606 (1616 Metric)	Rectangle with Flat Top	Surface Mount	Green Yellow	Independent
Lumex Opto/Components Inc. SML-LX0606SRSGC-TR
Lumex Opto/Components Inc. SML-LX0606SISYC-TR	1.5 mm	1.6 mm	590 nm 636 nm	Colorless	100 mcd 150 mcd		120 °	2 V 2 V	20 mA 20 mA	Clear	1.5 mm	1.2 mm	0606 (1616 Metric)	Rectangle with Flat Top	Surface Mount	Red Yellow	Independent	1.5 mm
Lumex Opto/Components Inc. SML-LX0606SISUGC/A	1.5 mm	1.6 mm	575 nm 639 nm	Colorless			120 °	2 V 2 V		Clear	1.5 mm	1.2 mm	0606 (1616 Metric)	Rectangle with Flat Top	Surface Mount	Green Red	Independent	1.5 mm	50mcd Green 50mcd Red	20 mA	20 mA
Lumex Opto/Components Inc. SML-LX0606IGC-TR	1.5 mm	1.6 mm	565 nm 635 nm	Colorless	10 mcd 10 mcd	0.7 mm	120 °	2 V 2.2 V		Clear	1.1 mm	1.5 mm	0606 (1616 Metric)	Rectangle with Flat Top	Surface Mount	Green Red	Independent			20 mA	20 mA
