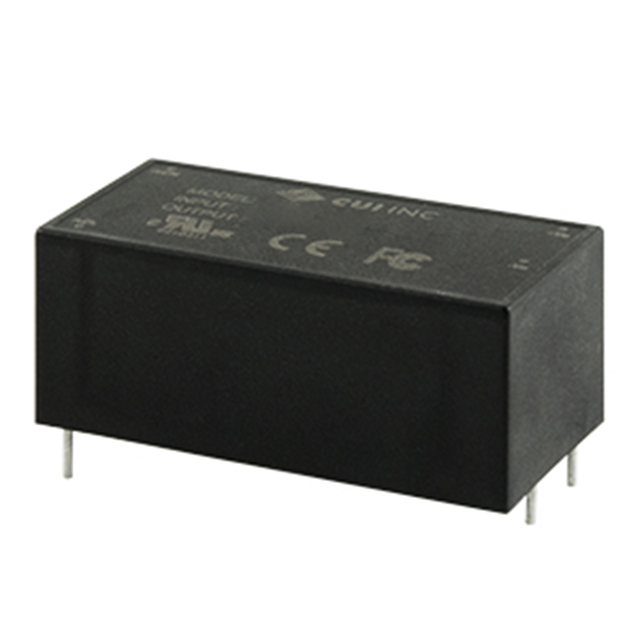

PSK-10B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 10W
| Part | Power (Watts) | Standard Number | Voltage - Output 1 | Applications | Number of Outputs | Mounting Type | Line Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Load Regulation | Package / Case | Approval Agency | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 10 W | 60950-1 61000-3-2 61000-3-3 62368-1 | 24 V | ITE (Commercial) | 1 | Through Hole | 0.5 % | 85 VAC 120 VDC | 264 VAC 370 VDC | Universal Input | 50.8 mm | 20.6 mm | 1 " | 25.4 mm | 0.81 in | 2 in | 3 % | 4-DIP Module | CB Scheme EN FCC IEC UL | 450 mA | 70 °C | -25 °C | 82.49 % | Enclosed |
CUI Inc. | 10 W | 60950-1 61000-3-2 61000-3-3 62368-1 | 5 V | ITE (Commercial) | 1 | Through Hole | 0.5 % | 85 VAC 120 VDC | 264 VAC 370 VDC | Universal Input | 50.8 mm | 20.6 mm | 1 " | 25.4 mm | 0.81 in | 2 in | 3 % | 4-DIP Module | CB Scheme EN FCC IEC UL | 2 A | 70 °C | -25 °C | 79 % | Enclosed |
CUI Inc. | 10 W | 60950-1 61000-3-2 61000-3-3 62368-1 | 12 V | ITE (Commercial) | 1 | Through Hole | 0.5 % | 85 VAC 120 VDC | 264 VAC 370 VDC | Universal Input | 50.8 mm | 20.6 mm | 1 " | 25.4 mm | 0.81 in | 2 in | 3 % | 4-DIP Module | CB Scheme EN FCC IEC UL | 850 mA | 70 °C | -25 °C | 82.32 % | Enclosed |
CUI Inc. | 10 W | 60950-1 61000-3-2 61000-3-3 62368-1 | 9 V | ITE (Commercial) | 1 | Through Hole | 0.5 % | Universal Input | 50.8 mm | 20.6 mm | 1 " | 25.4 mm | 0.81 in | 2 in | 3 % | 4-DIP Module | CB Scheme EN FCC IEC UL | 70 °C | -25 °C | 82.14 % | Enclosed |
