204-0003 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

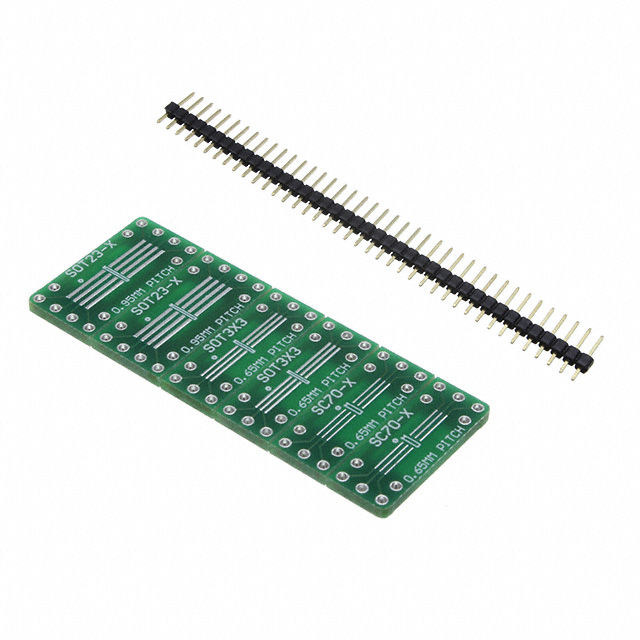

SCHMARTBOARDEZ SOT 23 & SC70 SMT
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package Accepted | Proto Board Type | Pitch | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | 50.55 mm | 0.79 in | 20.07 mm | 1.99 in | SC70 SOT | SMD to DIP | |||
 Schmartboard, Inc. | 50.55 mm | 0.79 in | 20.07 mm | 1.99 in | SOT-23 | SMD to DIP | 0.65 mm 0.95 mm | 0.026 in 0.037 in | 6 8 |
