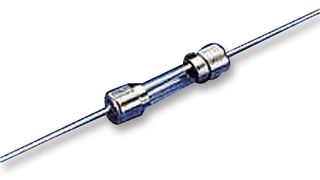

FUSE 250V FA PT 2AG Pb-FREE 1A
FUSE 250V FA PT 2AG Pb-FREE 1A
| Part | Current Rating (Amps) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Breaking Capacity @ Rated Voltage | Package / Case [y] | Package / Case [x] | Package / Case | Voltage Rating - DC | Fuse Type | Mounting Type | Melting I²t | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1 A | CE CSA PSE UL | -55 C | 125 °C | 14.48 mm | 4.7 mm | 0.57 in | 0.185 in | 250 V | 10 kA 35 A | 15 mm | 5 mm | 2AG | 125 VDC | Cartridge Glass | Through Hole | 2.22 I²t | Fast Blow |
