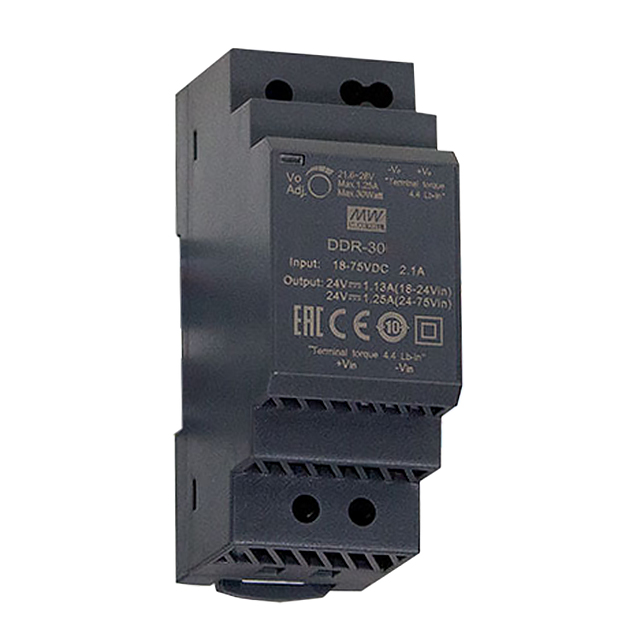

DDR-30 Series

Catalog

DC/DC DIN RAIL SUPPLY 24V 30W

Part	DC Voltage - Input (Min) [Min]	Approval Agency	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Efficiency	Applications	Input Type
MEAN WELL USA Inc. DDR-30L-24	18 V	CE EAC	75 V	24 V	30 Watts	1.25 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	91 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30L-15	18 V	CE EAC	75 V	15 V	30 Watts	2 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	90 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30G-15	9 V	CE EAC	36 V	15 V	30 Watts	2 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	87 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30G-24	9 V	CE EAC	36 V	24 V	30 Watts	1.25 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	89 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30G-12	9 V	CE EAC	36 V	12 V	30 Watts	2.5 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	86 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30G-5	9 V	CE EAC	36 V	5 V	30 Watts	6 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	85 %	ITE (Commercial)	DC
MEAN WELL USA Inc. DDR-30L-5	18 V	CE EAC	75 V	5 V	30 Watts	6 A	1	-40 °C	85 °C	Adjustable Output	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	4000 V	86 %	ITE (Commercial)	DC
