SS-6466 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

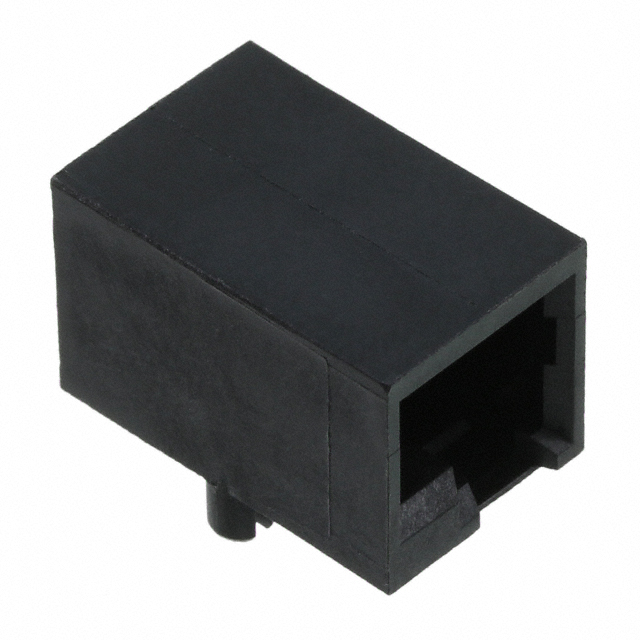

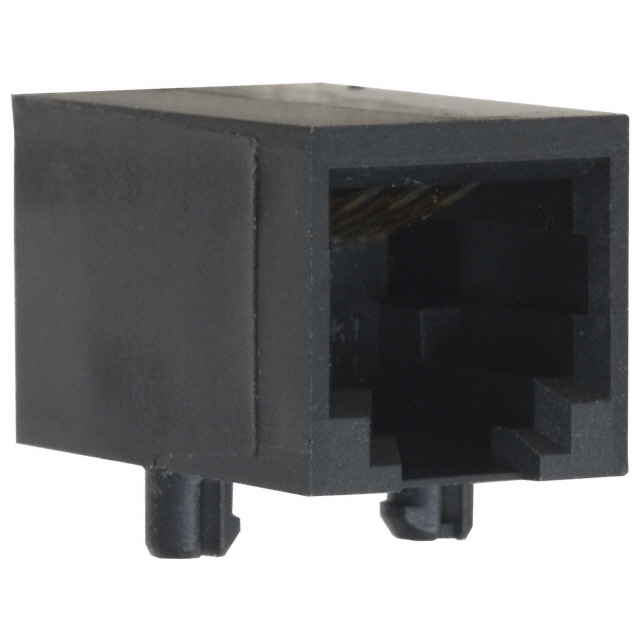

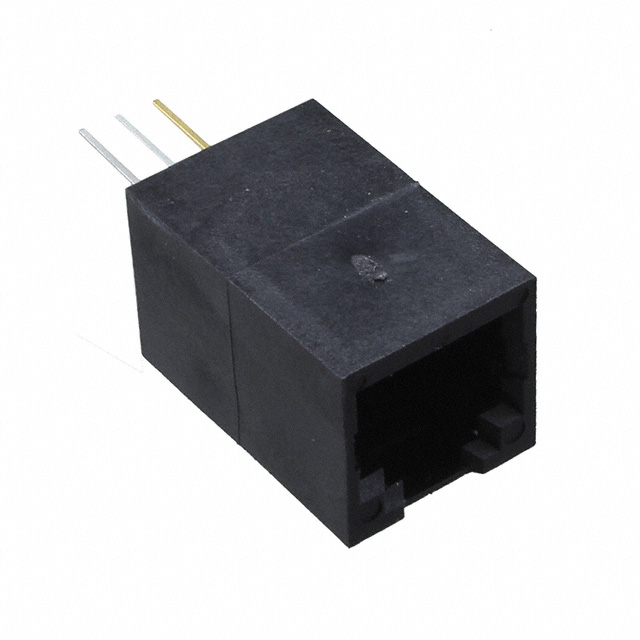

CONN TEL/TELC F 6 POS 2.54MM SLDR RA TH 6TERM ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Orientation | Contact Material | Termination | Features | Contact Finish | Mounting Type | Connector Type | Number of Ports | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Number of Rows | LED Color | Tab Direction | Shielding | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | 90 ° | Copper Alloy | Solder | Board Lock | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | Down | Unshielded | |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Copper Alloy | Solder | Switching Contacts | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | User Selectable | Unshielded | Vertical | |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | 90 ° | Copper Alloy | Solder | Board Lock Offset Latch | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | Down | Unshielded | |
 Bel Fuse Inc. | 90 ° | Copper Alloy | Solder | Board Lock | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | Down | Shielded | ||||||
 Bel Fuse Inc. | 90 ° | Copper Alloy | Solder | Board Lock | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | Down | Shielded | ||||||
 Bel Fuse Inc. | 90 ° | Copper Alloy | Solder | Board Lock | Gold | Through Hole | Jack | 1 | 6 | 6 | 1 | Does Not Contain LED | Down | Unshielded |
