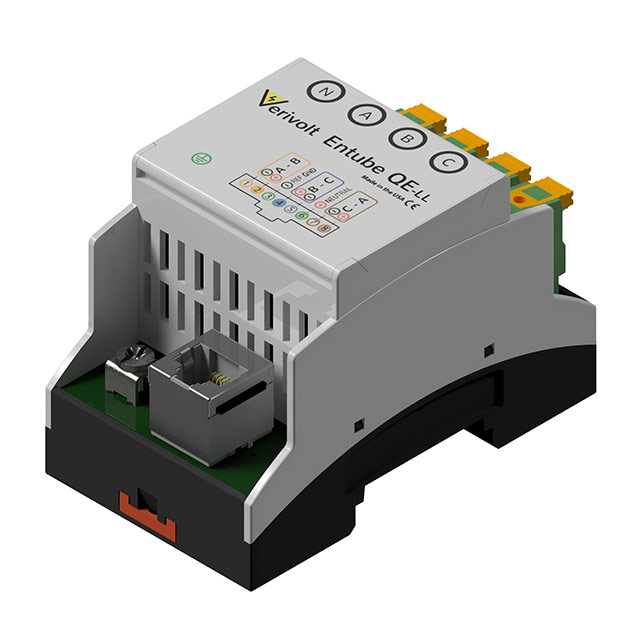

ENTUBE QE Series

Catalog

TRANSDUCER VOLTAGE DIVIDER

Part	Operating Temperature (Max)	Operating Temperature (Min)	Type	Output Voltage (Min)	Output Voltage (Max)	Accuracy	Termination Style	Input Voltage (Min)	Input Voltage (Max)	Mounting Type	Output Current (Min)	Output Voltage Tolerance	Output Current (Max)
Verivolt LLC ENTUBE QE (250VAC 7VAC L-L)	70 °C	-25 °C	Voltage Transducer	0 V	7 V	0.2 %	RJ45 Spring Terminal	0 mV	250 VAC	DIN Rail
Verivolt LLC ENTUBE QE (50V 5V L-L)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-50 V	50 V	DIN Rail	-5 V	5 V	5 V
Verivolt LLC ENTUBE QE (1500V 5V L-N)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-1500 V	1500 V	DIN Rail	-5 V	5 V	5 V
Verivolt LLC ENTUBE QE (500VAC 7VAC L-L)	70 °C	-25 °C	Voltage Transducer	0 V	7 V	0.2 %	RJ45 Spring Terminal	0 mV	500 V	DIN Rail
Verivolt LLC ENTUBE QE (1500V 5V L-L)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-1500 V	1500 V	DIN Rail	-5 V	5 V	5 V
Verivolt LLC ENTUBE QE (1000V 5V L-N)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-1000 V	1000 V	DIN Rail	-5 V	5 V	5 V
Verivolt LLC ENTUBE QE (500V 10V L-N)	70 °C	-25 °C	Voltage Transducer	-10 V	10 V	0.2 %	RJ45 Spring Terminal	-500 V	500 V	DIN Rail	-10 V		10 V
Verivolt LLC ENTUBE QE (300V 10V L-N)	70 °C	-25 °C	Voltage Transducer	-10 V	10 V	0.2 %	RJ45 Spring Terminal	-300 V	300 V	DIN Rail	-10 V		10 V
Verivolt LLC ENTUBE QE (750V 5V L-N)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-750 V	750 V	DIN Rail	-5 V	5 V	5 V
Verivolt LLC ENTUBE QE (500V 5V L-N)	70 °C	-25 °C	Voltage Transducer			0.2 %	RJ45 Spring Terminal	-500 V	500 V	DIN Rail	-5 V	5 V	5 V
