DBE/DVE Series

Isolated DC/DC Converters - Through Hole 12VOUT 25A 36-75VIN

Manufacturer: Murata Electronics

Catalog

Isolated DC/DC Converters - Through Hole 12VOUT 25A 36-75VIN

Catalog

Isolated DC/DC Converters - Through Hole 12VOUT 25A 36-75VIN

Part	Voltage - Output 1	Type	Voltage - Input (Min) [Min]	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)	Control Features	Size / Dimension [y]	Size / Dimension [z]

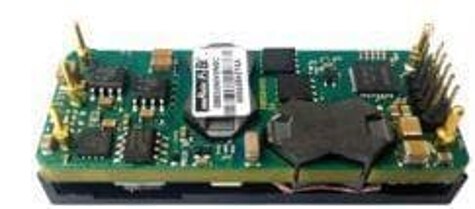

Murata Electronics DVE0340V2N2BC	3.3 V	Isolated Module	36 V	Through Hole	ITE (Commercial)	85 °C	-40 C	92.5 %	2250 VDC	1	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	OCP OTP OVP Remote On/Off SCP UVLO	40 A	1/8 Brick 16-DIP Module (15 Leads)	75 V	132 W	Active Low Enable
Murata Electronics DVE0340V2N1BC	3.3 V	Isolated Module	36 V	Through Hole	ITE (Commercial)	85 °C	-40 C	92.5 %	2250 VDC	1	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	OCP OTP OVP Remote On/Off SCP UVLO	40 A	1/8 Brick 16-DIP Module (15 Leads)	75 V	132 W	Active Low Enable
Murata Electronics DVE0240V2N1BC	5 V	Isolated Module	36 V	Through Hole	ITE (Commercial)	85 °C	-40 C	94 %	2250 VDC	1	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	OCP OTP OVP Remote On/Off SCP UVLO	40 A	1/8 Brick 16-DIP Module (15 Leads)	75 V	200 Watts	Active Low Enable
Murata Electronics DBE0240V2NC	5 V	Isolated Module Digital	36 V	Through Hole	ITE (Commercial)	85 °C	-40 C	94 %	2250 VDC	1	2.3 in		0.9 in		58.4 mm	0.45 in	OCP OTP OVP Remote On/Off SCP UVLO	40 A	1/8 Brick 16-DIP Module (15 Leads)	75 V	200 Watts	Active Low Enable	22.9 mm	11.4 mm
