MN19TX Series

Catalog

SWITCH ROCKER MINIATURE PC MNT

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Actuator Marking	Mounting Type	Termination Style	Voltage Rating - DC	Actuator Type	Approval Agency	Voltage Rating - AC	Switch Function	Color - Actuator/Cap
NKK Switches MN19TXG13-GA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	Varies by Cap	Through Hole	PC Pin	28 V	Actuator Arm Cap Required	UL	28 V	On-Off-Mom	Black
NKK Switches MN19TXW13
NKK Switches MN19TXW13-DA
NKK Switches MN19TXG13-GC	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	No Marking	Through Hole	PC Pin	28 V	Paddle	UL	28 V	On-Off-Mom	Red
NKK Switches MN19TXG13-GF	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	No Marking	Through Hole	PC Pin	28 V	Paddle	UL	28 V	On-Off-Mom	Green
NKK Switches MN19TXW13-EA
NKK Switches MN19TXG13-EH	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	No Marking	Through Hole	PC Pin	28 V	Paddle	UL	28 V	On-Off-Mom
NKK Switches MN19TXG13	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	Varies by Cap	Through Hole	PC Pin	28 V	Actuator Arm Cap Required	UL	28 V	On-Off-Mom
NKK Switches MN19TXW13-DB

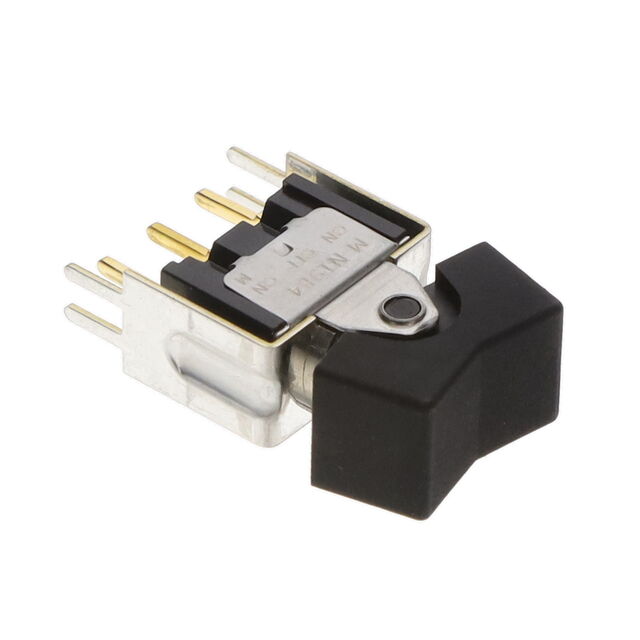

NKK Switches MN19TXG13-DA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	0.4 VA	No Marking	Through Hole	PC Pin	28 V	Concave	UL	28 V	On-Off-Mom	Black
