BM-1R2 Series

Catalog

SWITCH SNAP ACTION SPDT 22A 125V

Part	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - AC	Circuit	Pretravel	Pretravel	Mechanical Life	Switch Function	Differential Travel	Differential Travel	Mounting Type	Termination Style	Operating Position	Operating Position	Current Rating (Amps)	Operating Force [Max]	Operating Force [Min]	Release Force

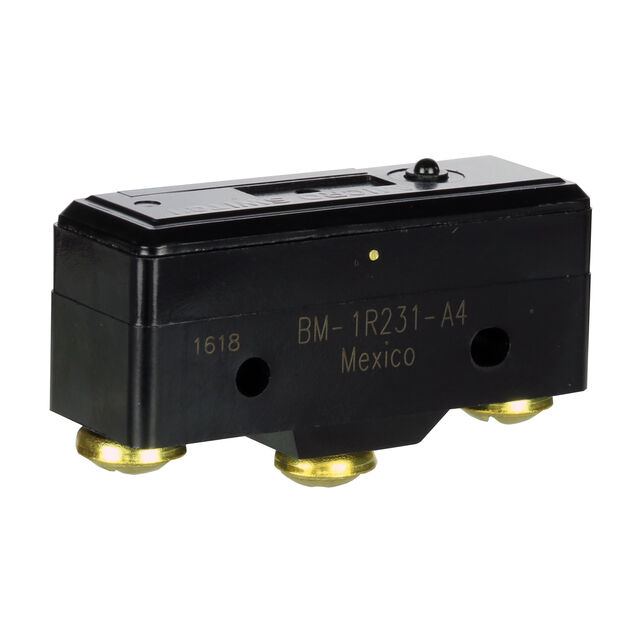

Honeywell Sensing and Productivity Solutions BM-1R231-A4	0.13 mm	0.005 in	85 °C	-55 °C	Round (Pin Plunger)	125 V	SPDT	0.015 in	0.4 mm	20000000 Cycles	On-Mom	0.025 mm	0.001 in	Chassis Mount	Screw Terminal	0.625 in	15.9 mm	22 A	283 gf	198 gf

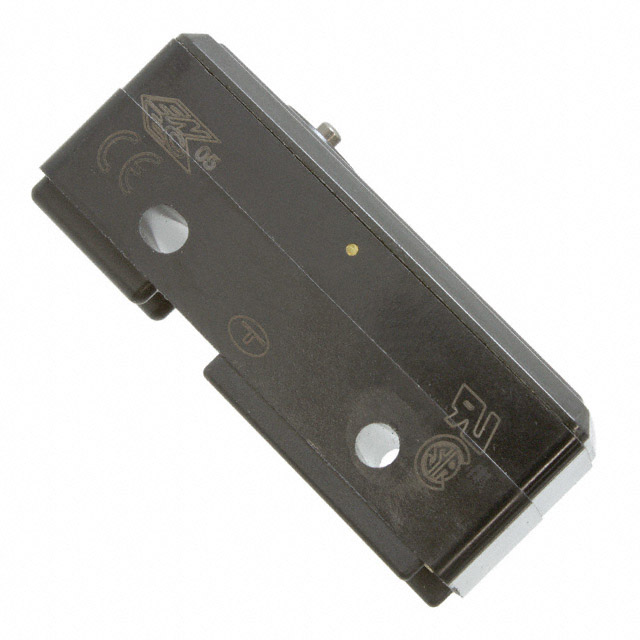

Honeywell Sensing and Productivity Solutions BM-1R2420	0.13 mm	0.005 in	121 °C	-55 °C	Round (Pin Plunger)	125 V	SPDT	0.015 in	0.4 mm	20000000 Cycles	On-Mom	0.025 mm	0.001 in	Chassis Mount	Screw Terminal	0.625 in	15.9 mm	22 A	283 gf	198 gf	113 gf
