NPTC251 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

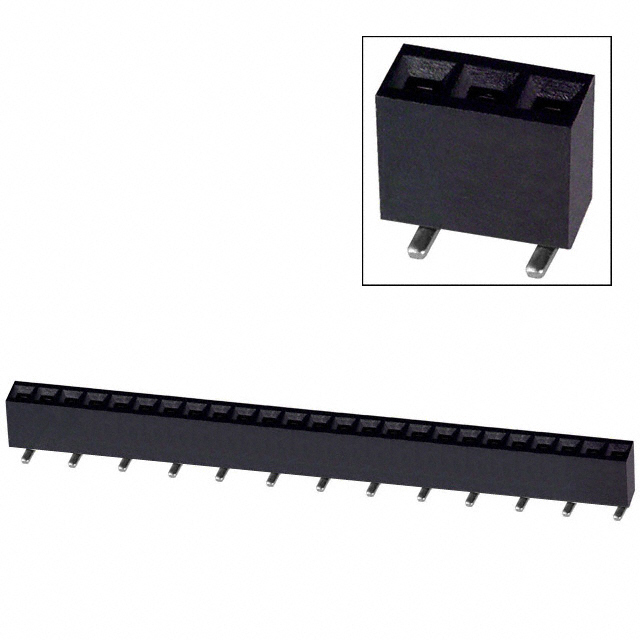

CONN HDR 25POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Contact Type | Number of Positions | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Connector Type | Fastening Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Voltage Rating | Insulation Color | Current Rating (Amps) | Number of Positions Loaded | Mounting Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Female Socket | 25 | UL94 V-0 | -40 C | 105 ░C | 1 | Solder | Header Top or Bottom Entry | Push-Pull | 0.28 in | 7.1 mm | 0.1 " | 2.54 mm | 250 V | Black | 3 A | All | Surface Mount | Tin |
