H2085 Series
Manufacturer: Harwin Inc.
Beta
⌘K

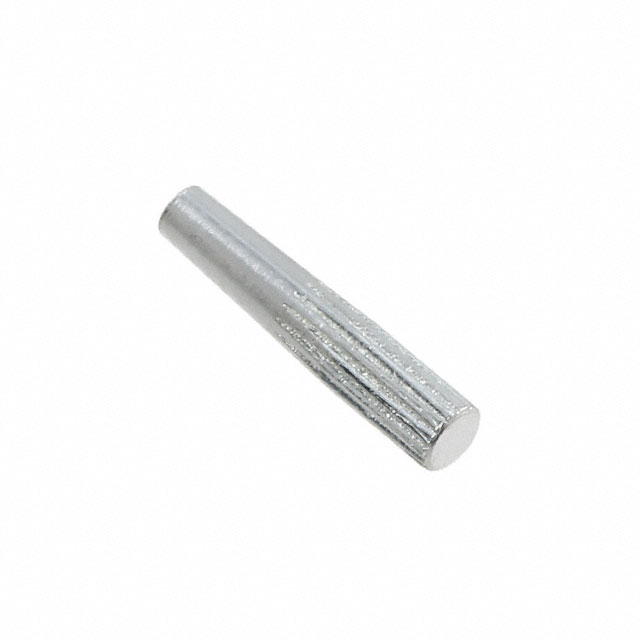

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES
| Part | Contact Finish | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Terminal Style | Terminal Type | Contact Material | Mounting Type | Length - Overall [x] | Length - Overall [x] | Board Thickness [custom] | Board Thickness [custom] | Termination | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Tin | 0.051 " | 0.053 " 1.35 mm | 1.3 mm | Single End | PC Pin | Brass | Through Hole | 7.14 mm | 0.281 in | 0.094 in | 2.39 mm | Staking Flare | Non-Insulated |
