392-088 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 88POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions	Gender	Number of Positions/Bay/Row	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Flange Feature	Read Out	Color	Pitch	Pitch	Termination	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 392-088-541-207	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Flush Mount M3 Threaded Insert Top Opening	Dual	Black	0.1 "	2.54 mm	Wire Wrap	Cantilever
EDAC Inc. 392-088-523-204	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Flush Mount Top Opening Unthreaded	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.156 "	3.96 mm
EDAC Inc. 392-088-560-212	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Flush Mount Side Opening Unthreaded	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.128 "	3.25 mm	Card Extender

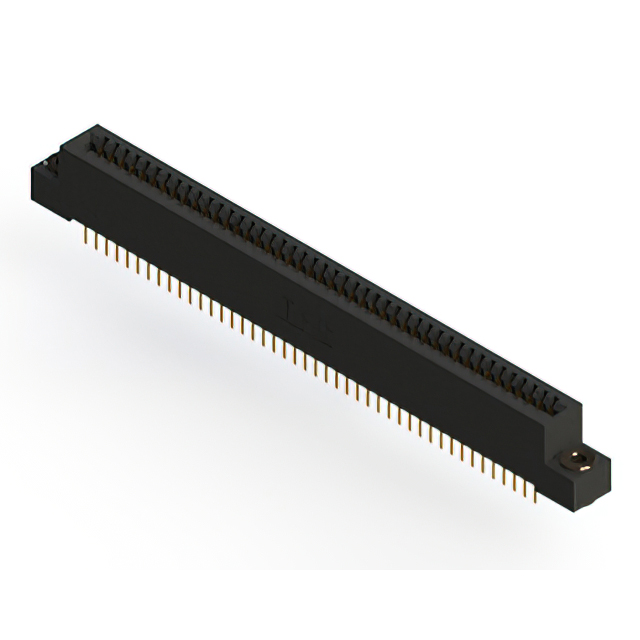

EDAC Inc. 392-088-524-203	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Floating Bobbin Flush Mount	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.116 "	2.95 mm

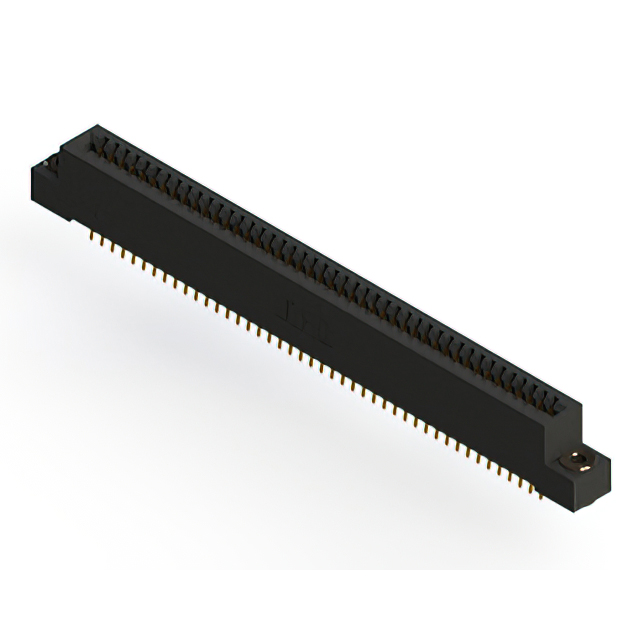

EDAC Inc. 392-088-556-203	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Floating Bobbin Flush Mount	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.116 "	2.95 mm	Card Extender
EDAC Inc. 392-088-521-203	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Floating Bobbin Flush Mount	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.116 "	2.95 mm
EDAC Inc. 392-088-559-204	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Flush Mount Top Opening Unthreaded	Dual	Black	0.1 "	2.54 mm	Solder Wire Wrap	Cantilever	0.156 "	3.96 mm
EDAC Inc. 392-088-555-201	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2		Dual	Black	0.1 "	2.54 mm	Solder Eyelet(s)	Cantilever			Card Extender
EDAC Inc. 392-088-523-203	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Floating Bobbin Flush Mount	Dual	Black	0.1 "	2.54 mm	Solder	Cantilever	0.116 "	2.95 mm
EDAC Inc. 392-088-559-207	Polyester Thermoplastic	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Non Specified - Dual Edge	88	Female	44	Gold	-40 C	105 ░C	2	Flush Mount M3 Threaded Insert Top Opening	Dual	Black	0.1 "	2.54 mm	Solder Wire Wrap	Cantilever
