NPPN112 Series

Catalog

CONN HDR 22POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Termination	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height	Contact Type	Fastening Type	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Height	Features
Sullins Connector Solutions NPPN112FFKS-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	2 mm	0.079 in	-40 C	105 ░C	Black	Flash	Gold	22	Gold	2	0.079 "	2 mm	All	UL94 V-0	Solder	2 A	Surface Mount	4.4 mm	0.173 in	Female Socket	Push-Pull	Header

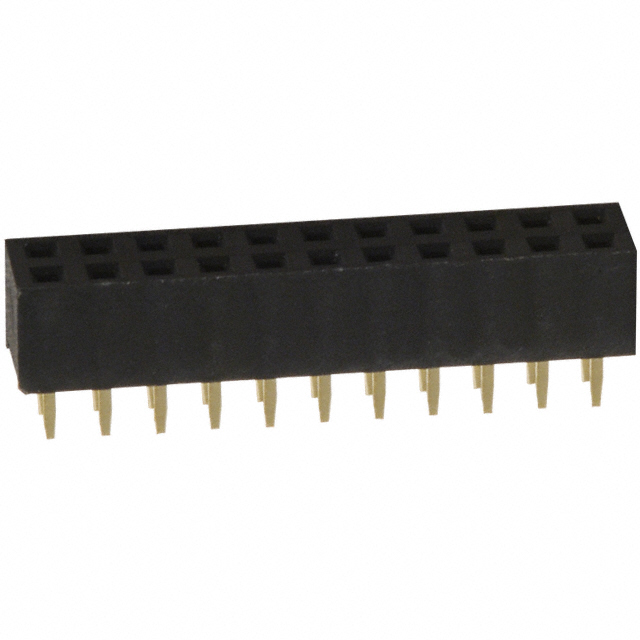

Sullins Connector Solutions NPPN112AFCN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	2 mm	0.079 in	-40 C	105 ░C	Black	Flash	Gold	22	Gold	2	0.079 "	2 mm	All	UL94 V-0	Solder		Through Hole		4.3 mm	Female Socket	Push-Pull	Header	2.4 mm	0.094 in	0.169 "
Sullins Connector Solutions NPPN112GFNP-M81RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	2 mm	0.079 in	-40 C	105 ░C	Black	Flash	Gold	22	Gold	2	0.079 "	2 mm	All	UL94 V-0	Solder	2 A	Surface Mount			Female Socket	Push-Pull	Header Top or Bottom Entry				Board Guide Pick and Place
