PMT-48 Series

Catalog

AC/DC CONVERTER 48V 350W

Part	Efficiency	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Applications	Approval Agency	Voltage - Output 1	Mounting Type	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]

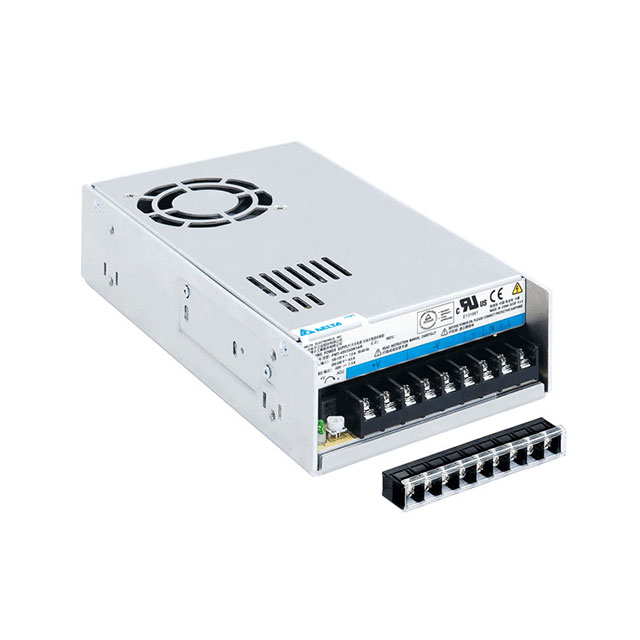

Delta Electronics PMT-48V350W1AK	87.5 %	Enclosed	215 mm	8.46 in	50 mm	4.53 in	115 mm	1.97 "	7.3 A	ITE (Commercial)	CB CE cURus TUV	48 V	Chassis Mount	3000 V	90 VAC 180 VAC	132 VAC 264 VAC	1	Adjustable Output Load Sharing	350 W	70 °C	-10 °C

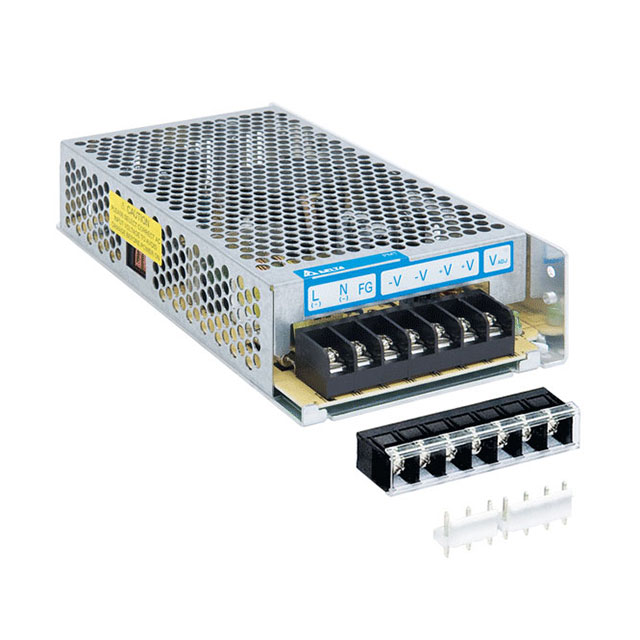

Delta Electronics PMT-48V150W1AH	89 %	Enclosed	178 mm	7.01 in		3.82 in		1.5 in	3.3 A	ITE (Commercial)	CB CCC CE cURus TUV	48 V	Chassis Mount	3000 V	90 VAC 180 VAC	132 VAC 264 VAC	1	Adjustable Output Load Sharing	150 W	70 °C	-10 °C	38 mm	97 mm

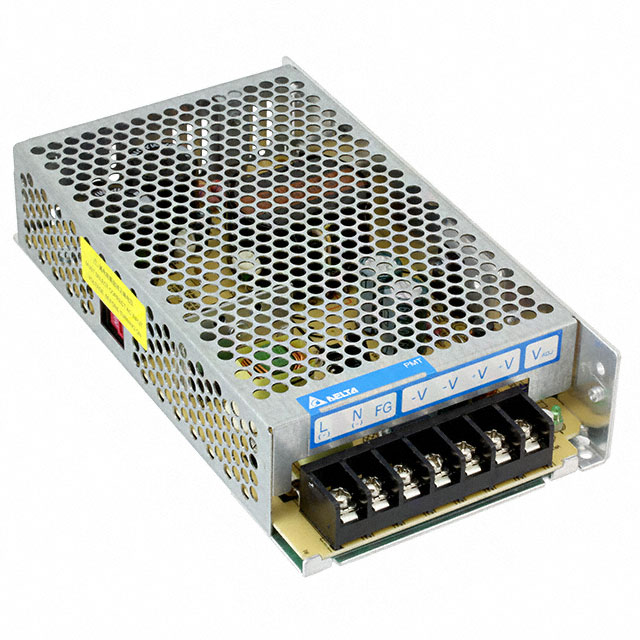

Delta Electronics PMT-48V150W1AA	89 %	Enclosed	178 mm	7.01 in		3.82 in		1.5 in	3.3 A	ITE (Commercial)	CB CCC CE cURus TUV	48 V	Chassis Mount	3000 V	90 VAC 180 VAC	132 VAC 264 VAC	1	Adjustable Output Load Sharing	150 W	70 °C	-10 °C	38 mm	97 mm
Delta Electronics PMT-48V350W1AR	87.5 %	Enclosed	215 mm	8.46 in	50 mm	4.53 in	115 mm	1.97 "	7.3 A	ITE (Commercial)	CB CE cURus TUV	48 V	Chassis Mount	3000 V	90 VAC 180 VAC	132 VAC 264 VAC	1	Adjustable Output Load Sharing	350 W	70 °C	-10 °C

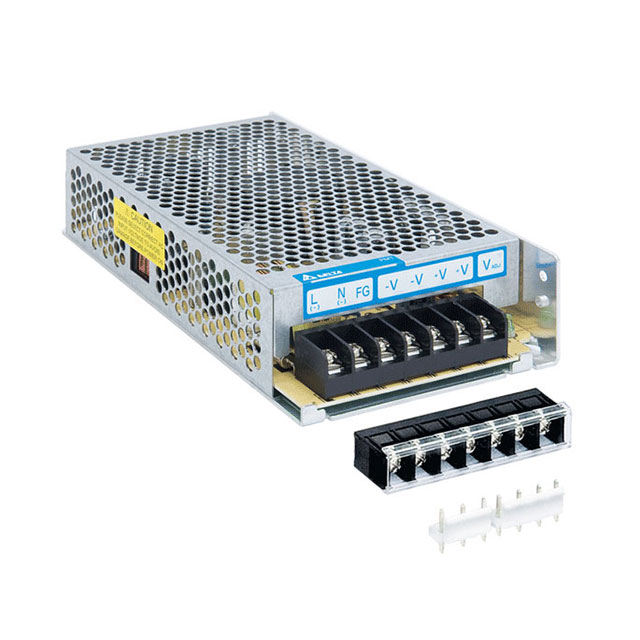

Delta Electronics PMT-48V150W1AG	89 %	Enclosed	178 mm	7.01 in		3.82 in		1.5 in	3.3 A	ITE (Commercial)	CB CCC CE cURus TUV	48 V	Chassis Mount	3000 V	90 VAC 180 VAC	132 VAC 264 VAC	1	Adjustable Output Load Sharing	150 W	70 °C	-10 °C	38 mm	97 mm
