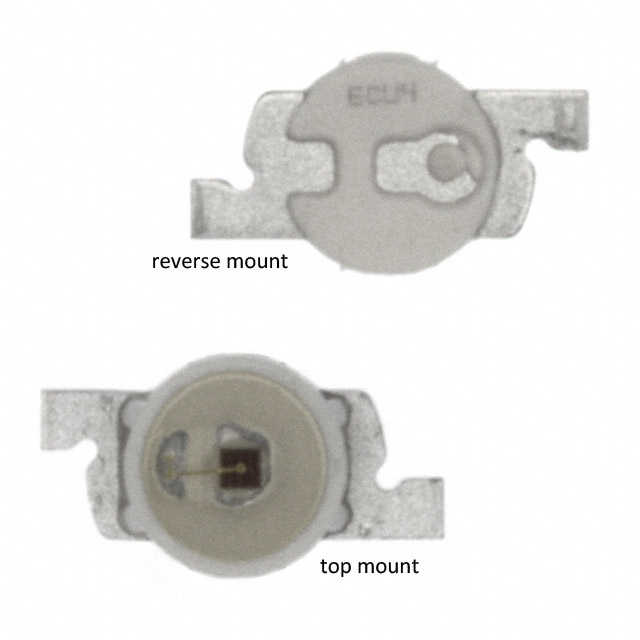

LYP47F Series

Catalog

LED YELLOW CLEAR SMD BOTTOM ENT

Part	Lens Transparency	Wavelength - Peak	Height (Max) [Max] [z]	Lens Size [diameter]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	Lens Color	Color	Package / Case	Mounting Type	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Current - Test	Wavelength - Dominant	Configuration
ams-OSRAM USA INC. LY P47F-V2BA-36-3B5B-30-R18-Z	Clear	597 nm	0.88 mm	1.6 mm	1.9 mm	3.4 mm	SMD	120 °	Colorless	Yellow	2-SMD Flat Leads	Surface Mount Bottom Entry	Round with Flat Top	2.05 V	1570 mcd	30 mA	590 nm
ams-OSRAM USA INC. LY P47F-U2AB-36-3B5A-Z	Clear	597 nm	0.88 mm	1.6 mm	1.9 mm	3.4 mm	SMD	120 °	Colorless	Yellow	2-SMD Flat Leads	Surface Mount Bottom Entry	Round with Flat Top	2.05 V		30 mA	590 nm	Standard
ams-OSRAM USA INC. LY P47F-U2AB-36-4A5B-Z	Clear	597 nm	0.88 mm	1.6 mm	1.9 mm	3.4 mm	SMD	120 °	Colorless	Yellow	2-SMD Flat Leads	Surface Mount Bottom Entry	Round with Flat Top	2.35 V		30 mA	590 nm	Standard
ams-OSRAM USA INC. LY P47F-V2BA-36-3B5B-30-R18F-Z	Clear	597 nm	0.88 mm	1.6 mm	1.9 mm	3.4 mm	SMD	120 °	Colorless	Yellow	2-SMD Flat Leads	Surface Mount	Round with Flat Top	2.05 V	1570 mcd	30 mA	590 nm
