S-1170 Series

Catalog

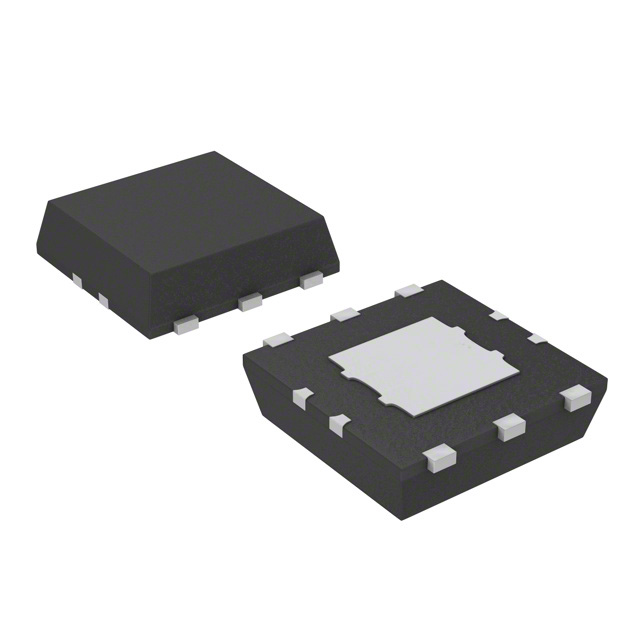

IC REG LINEAR 2.7V 800MA 6HSON

Part	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Control Features	Voltage - Output (Min/Fixed)	Output Configuration	Package / Case	Voltage Dropout (Max) [Max]	PSRR	Number of Regulators	Supplier Device Package	Current - Output	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max)
ABLIC Inc. S-1170B27PD-OTMTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	2.7 V	Positive	6-SMD Flat Leads Exposed Pad	0.22 V	70 db	1	6-HSON (A) (2.9x2.8)	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B47UC-OUGTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	4.7 V	Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B39UC-OTYTFU	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable		Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V	3.9 V
ABLIC Inc. S-1170B44UC-OUDTFU	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable		Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V	4.4 V
ABLIC Inc. S-1170B48UC-OUHTFU	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	4.8 V	Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B40UC-OTZTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	4 V	Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B16UC-OTBTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	1.6 V	Positive	SOT-89-5/6		70 db	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V		0.35 V
ABLIC Inc. S-1170B17PD-OTCTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	1.7 V	Positive	6-SMD Flat Leads Exposed Pad	0.3 V	70 db	1	6-HSON (A) (2.9x2.8)	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B42UC-OUBTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	4.2 V	Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V
ABLIC Inc. S-1170B53UC-OUMTFG	85 C	-40 ¯C	Over Current Thermal Shutdown	Enable	5.3 V	Positive	SOT-89-5/6	0.18 V	65 dB	1	SOT-89-5	800 mA	Surface Mount	1 µA	6.5 V
