SA23-12 Series

Catalog

DISPLAY 7SEG 2.24" SGL GRN 10DIP

Part	Color	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Common Pin	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Number of Characters	Display Type	Current - Test	Power Dissipation (Max) [Max]	Power Dissipation (Max)
Kingbright SA23-12GWA	Green	2.37 in	60.1 mm	10-DIP	2.24 in	56.9 mm	565 nm	Common Anode	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	65 mcd	8.8 V	1	7-Segment	20 mA	250 mW
Kingbright SA23-12SRWA	Red	2.37 in	60.1 mm	10-DIP	2.24 in	56.9 mm	660 nm	Common Anode	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	190 mcd	7.4 V	1	7-Segment	20 mA		300 mW

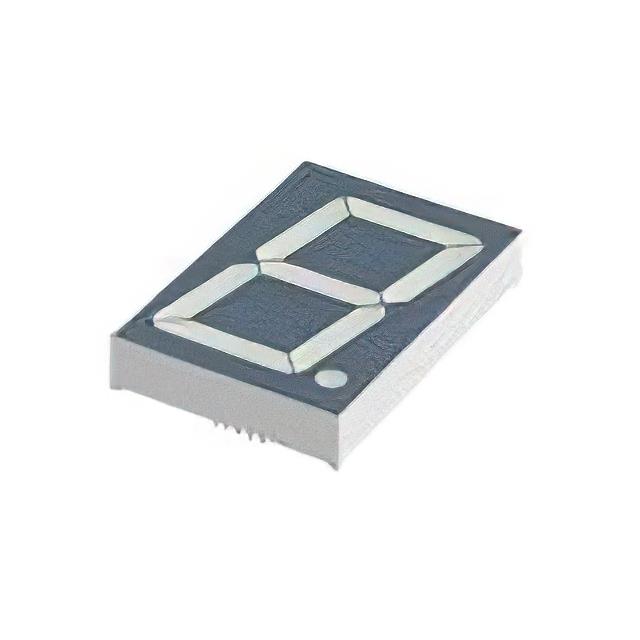

Kingbright SA23-12SURKWA	Red	2.366 in	60.1 mm	10-DIP	2.24 in	56.9 mm	645 nm	Common Anode	12.25 mm	70 mm	0.482 in	2.756 "	1.89 in	48 mm	440 mcd	3.7 V 7.4 V	1	7-Segment	10 mA	75 mw
Kingbright SA23-12EWA	Red	2.37 in	60.1 mm	10-DIP	2.24 in	56.9 mm	627 nm	Common Anode	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	57 mcd	8 V	1	7-Segment	20 mA		300 mW
