PMS9P1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH PUSH SPST-NO 0.4VA 20V

Part	Mechanical Life	Actuator Marking	Mounting Type	Voltage Rating - DC	Features	Actuator Type	Current Rating (Amps)	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Termination Style	Color - Actuator/Cap	Type	Panel Cutout Dimensions [diameter]

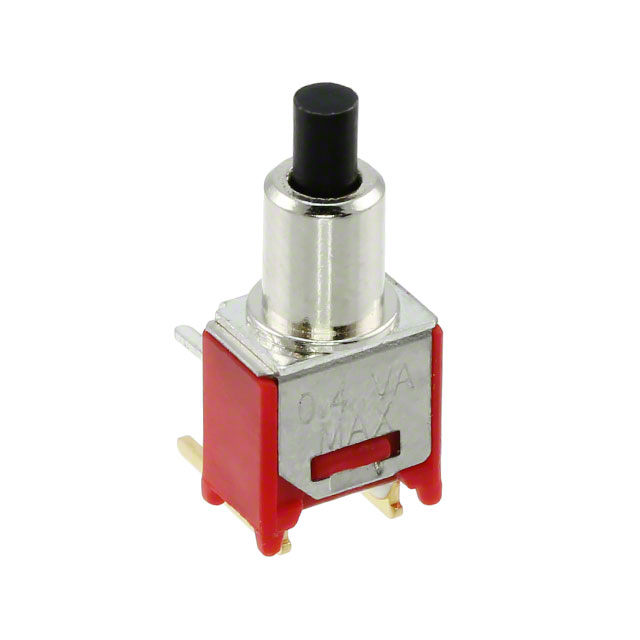

TE Connectivity AMP Connectors PMS9P1B07M6RE	50000 Cycles	No Marking	Right Angle Through Hole	20 V	Sealed	Plunger Round	0.4 VA	SPST-NO	85 °C	-30 ░C	20 V	Off-Mom	PC Pin	Black	Standard

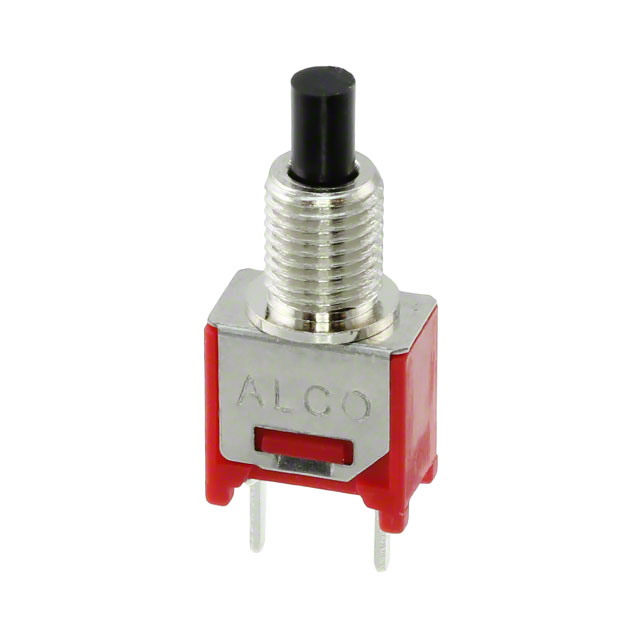

TE Connectivity AMP Connectors PMS9P1B05M2QE	50000 Cycles	No Marking	Panel Mount Rear	28 V	Sealed	Plunger Round	3 A	SPST-NO	85 °C	-30 ░C	120 V	Off-Mom	PC Pin	Black	Standard	4.95 mm

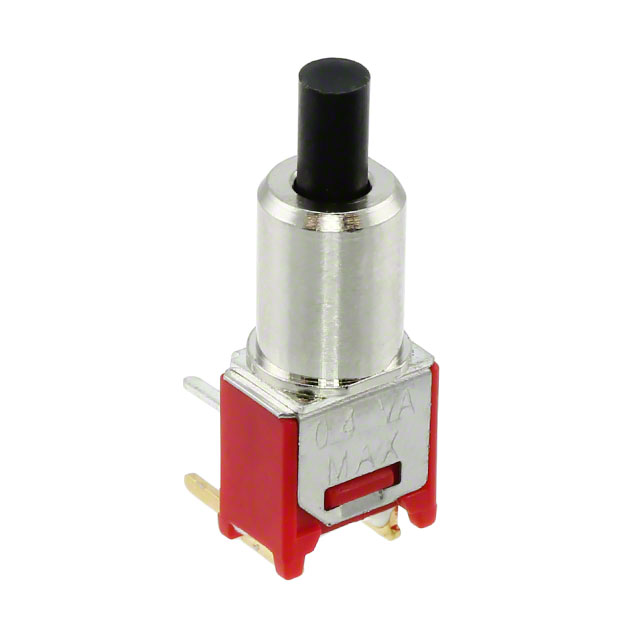

TE Connectivity AMP Connectors PMS9P1B08M6RE	50000 Cycles	No Marking	Right Angle Through Hole	20 V	Sealed	Plunger Round	0.4 VA	SPST-NO	85 °C	-30 ░C	20 V	Off-Mom	PC Pin	Black	Standard

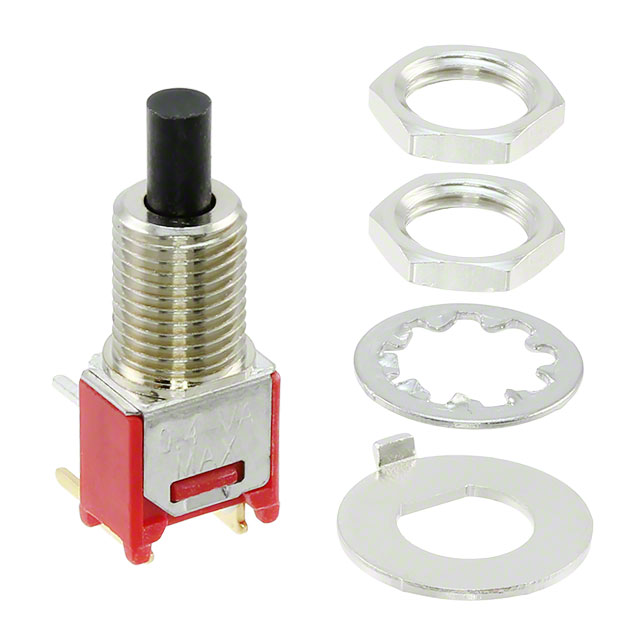

TE Connectivity AMP Connectors PMS9P1B09M6RE	50000 Cycles	No Marking	Panel Mount Rear Right Angle	20 V	Sealed	Plunger Round	0.4 VA	SPST-NO	85 °C	-30 ░C	20 V	Off-Mom	PC Pin	Black	Standard	0.25 in
TE Connectivity AMP Connectors PMS9P1B05M6RE	50000 Cycles	No Marking	Panel Mount Rear Right Angle	20 V	Sealed	Plunger Round	0.4 VA	SPST-NO	85 °C	-30 ░C	20 V	Off-Mom	PC Pin	Black	Standard	4.95 mm
TE Connectivity AMP Connectors PMS9P1B09M2QE	50000 Cycles	No Marking	Panel Mount Rear	28 V	Sealed	Plunger Round	3 A	SPST-NO	85 °C	-30 ░C	120 V	Off-Mom	PC Pin	Black	Standard	0.25 in

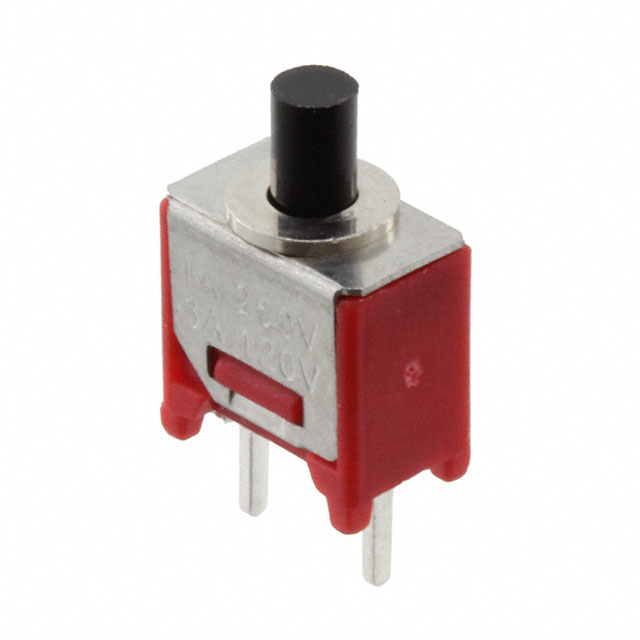

TE Connectivity AMP Connectors PMS9P1B10M2QE	50000 Cycles	No Marking	Through Hole	28 V	Sealed	Plunger Round	3 A	SPST-NO	85 °C	-30 ░C	120 V	Off-Mom	PC Pin	Black	Standard

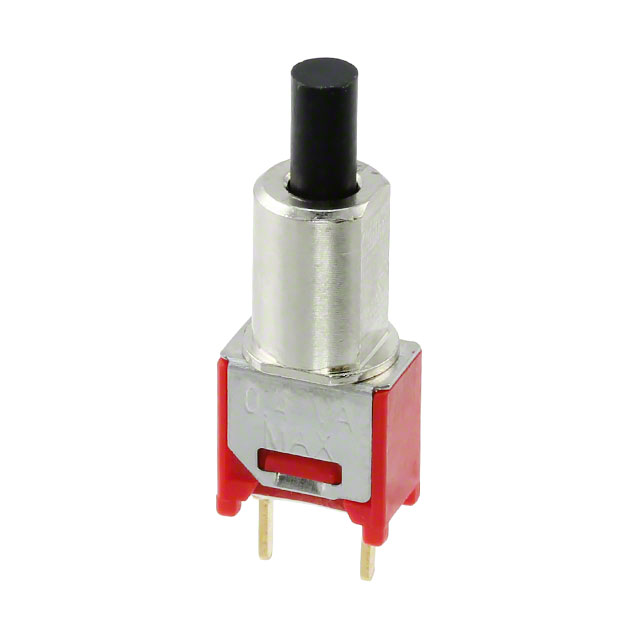

TE Connectivity AMP Connectors PMS9P1B08M2RE	50000 Cycles	No Marking	Through Hole	20 V	Sealed	Plunger Round	0.4 VA	SPST-NO	85 °C	-30 ░C	20 V	Off-Mom	PC Pin	Black	Standard
