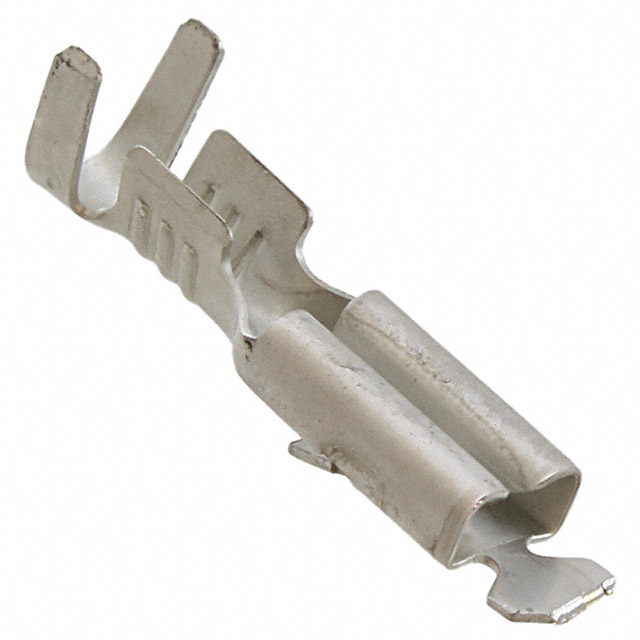

160655 Series

Catalog

CONN QC RCPT 15.5-20AWG 0.110

Part	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Termination	Tab Thickness	Tab Thickness	Terminal Type	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Tab Width	Tab Width	Insulation	Tab Length	Tab Length	Gender
TE Connectivity Raychem Cable Protection 160655-5	Free Hanging (In-Line)	Brass	0.551 "	14 mm	20 AWG	16 AWG	Silver	Crimp	0.032 in	0.81 mm	Standard	2 mm	0.118 in	0.079 in	3 mm	2.79 mm	0.11 "	Non-Insulated	0.248 in	6.3 mm	Female
TE Connectivity Raychem Cable Protection 160655-9	Free Hanging (In-Line)	Brass	0.551 "	14 mm	1.5 mm²	0.5 mm²	Tin	Crimp	0.031 "	0.79 mm	Standard	2 mm	0.118 in	0.079 in	3 mm			Non-Insulated	0.248 in	6.3 mm	Female
TE Connectivity Raychem Cable Protection 160655-3	Free Hanging (In-Line)	Phosphor Bronze	0.551 "	14 mm	20 AWG	16 AWG		Crimp	0.032 in	0.81 mm	Standard	2 mm	0.118 in	0.079 in	3 mm	2.79 mm	0.11 "	Non-Insulated	0.248 in	6.3 mm	Female
TE Connectivity Raychem Cable Protection 160655-4	Free Hanging (In-Line)	Phosphor Bronze	0.551 "	14 mm	20 AWG	16 AWG	Tin	Crimp	0.032 in	0.81 mm	Standard	2 mm	0.118 in	0.079 in	3 mm	2.79 mm	0.11 "	Non-Insulated	0.248 in	6.3 mm	Female
