UG06 Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

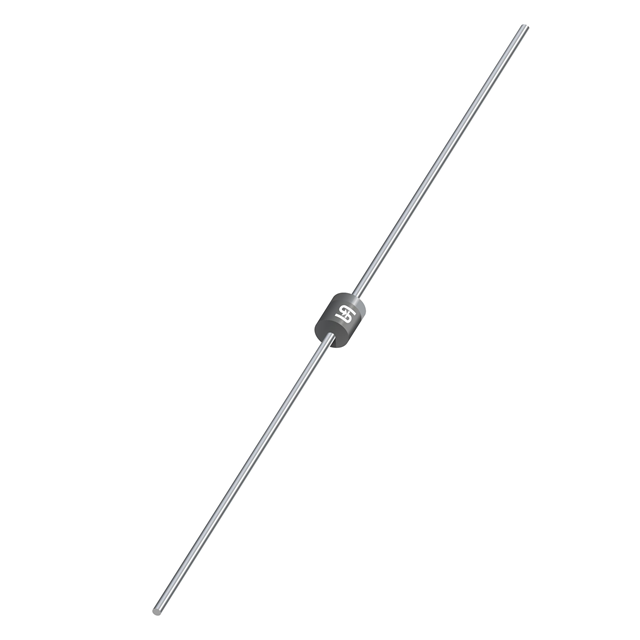

DIODE GEN PURP 150V 600MA TS-1

Part	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F	Package / Case	Mounting Type	Speed	Technology	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Grade
Taiwan Semiconductor Corporation UG06C	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C
Taiwan Semiconductor Corporation UG06BHA0G	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C	AEC-Q101	100 V	Automotive
Taiwan Semiconductor Corporation UG06AH	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C	AEC-Q101	50 V	Automotive
Taiwan Semiconductor Corporation UG06CH	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C	AEC-Q101		Automotive
Taiwan Semiconductor Corporation UG06A	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C		50 V
Taiwan Semiconductor Corporation UG06B A1G	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C		100 V
Taiwan Semiconductor Corporation UG06DH	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 ÁA	-55 °C	150 °C	AEC-Q101	200 V	Automotive
Taiwan Semiconductor Corporation UG06BH	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C	AEC-Q101	100 V	Automotive
Taiwan Semiconductor Corporation UG06D	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 ÁA	-55 °C	150 °C		200 V
Taiwan Semiconductor Corporation UG06B	TS-1	600 mA	950 mV	9 pF	T-18 Axial	Through Hole	200 mA 500 ns	Standard	15 ns	5 µA	-55 °C	150 °C		100 V
