GZC34 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 34POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Contact Shape	Shrouding	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions [custom]	Contact Material	Style	Number of Positions Loaded	Connector Type	Fastening Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Rows	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions GZC34SGSN-M89	0.1 "	2.54 mm	Male Pin	Nylon 9T Polyamide (PA9T)	Square	Unshrouded	Black	3.56 mm	0.14 in	Gold	34	Phosphor Bronze	Board to Board Cable	All	Header	Push-Pull	8.08 mm	0.318 in	3 A	UL94 V-0	-65 ░C	125 °C	600 V	2.54 µm	100 µin	Right Angle Surface Mount	1	Solder	0.25 µm	10 µin	Tin-Lead

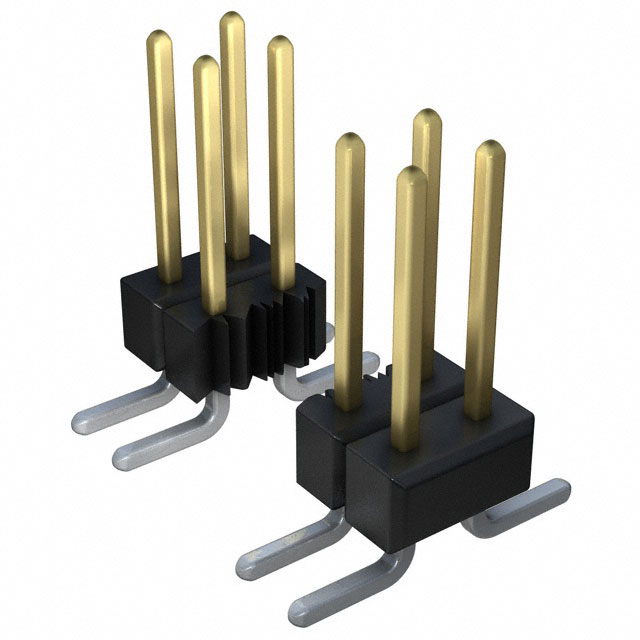

Sullins Connector Solutions GZC34DFBN-M30	0.1 "	2.54 mm	Male Pin	Nylon 9T Polyamide (PA9T)	Square	Unshrouded	Black	2.54 mm	0.1 in	Gold		Phosphor Bronze	Board to Board Cable	All	Header	Push-Pull	8.08 mm	0.318 in	3 A	UL94 V-0	-65 ░C	125 °C	600 V	2.54 µm	100 µin	Surface Mount		Solder	0.25 µm	10 µin	Tin-Lead	68 positions	2	0.1 in	2.54 mm
Sullins Connector Solutions GZC34SABN-M30	0.1 "	2.54 mm	Male Pin	Nylon 9T Polyamide (PA9T)	Square	Unshrouded	Black	2.54 mm	0.1 in	Gold	34	Phosphor Bronze	Board to Board Cable	All	Header	Push-Pull	5.84 mm	0.23 in	3 A	UL94 V-0	-65 ░C	125 °C	600 V	2.54 µm	100 µin	Surface Mount	1	Solder	0.25 µm	10 µin	Tin-Lead
