XC5C Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

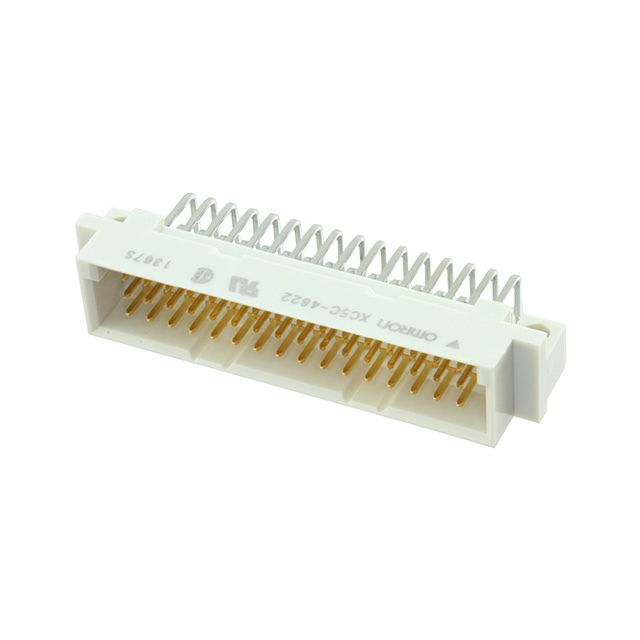

CONN DIN PLUG 48POS PCB RA GOLD

Part	Current Rating (Amps)	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Pitch	Pitch	Connector Type	Number of Rows [custom]	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Style	Number of Positions	Mounting Type
Omron Electronics Inc-EMC Div XC5C-4822	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	All	0.1 "	2.54 mm	Plug Male Pins	3	Gold	Solder	16 µin	0.41 µm	C	48	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C3222BYOMR	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0		0.1 "	2.54 mm	Plug Male Pins	3					C		Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C9642ABYOMR	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0		0.1 "	2.54 mm	Plug Male Pins	3					C	96	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C-9682-1	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	All	0.1 "	2.54 mm	Plug Male Pins	3	Gold	Solder	16 µin	0.41 µm	C	96	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C-4882-1	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	All	0.1 "	2.54 mm	Plug Male Pins	3	Gold	Solder	16 µin	0.41 µm	C	48	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C-6422-A	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0		0.1 "	2.54 mm	Plug Male Pins	3					C	64	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C4842RBYOMR	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0		0.1 "	2.54 mm	Plug Male Pins	3					C	48	Right Angle Through Hole
Omron Electronics Inc-EMC Div XC5C-9682-1A	2 A	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	All	0.1 "	2.54 mm	Plug Male Pins	3			16 µin	0.41 µm	C	96	Right Angle Through Hole
