3-110 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

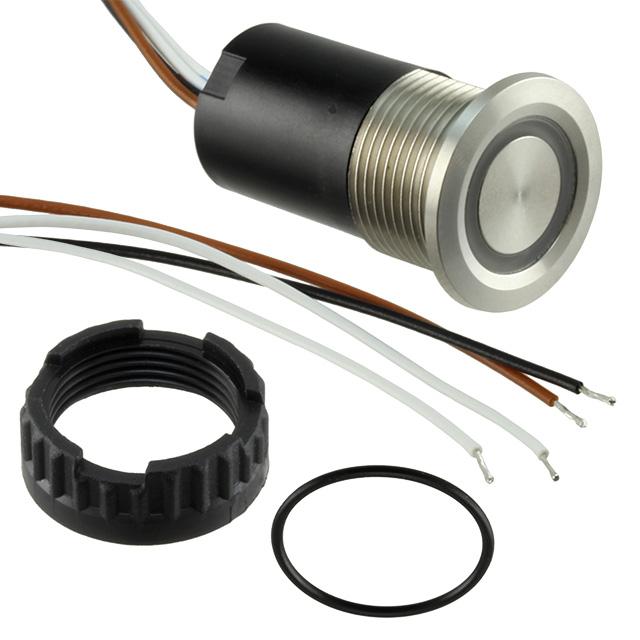

SWITCH PUSHBUTTON SPST 100MA 42V
| Part | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Voltage Rating - DC | Illumination Voltage (Nominal) [Min] | Illumination Voltage (Nominal) [Max] | Illumination Type, Color | Actuator Type | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Termination Style | Switch Function | Ingress Protection | Type | Color - Actuator/Cap | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 16.1 mm | SPST | 60 °C | -40 C | No Marking | 60 VDC | 5 VDC | 28 VDC | Blue LED | Button Flush Round | 100 mA | Panel Mount Front | 42 V | Wire Leads | Off-On | IP67 - Dust Tight Waterproof | Capacitive Illuminated | Silver | Finger Guide |
SCHURTER Inc. | 16.1 mm | SPST | 60 °C | -40 C | No Marking | 60 VDC | 5 VDC | 28 VDC | Green LED | Button Flush Round | 100 mA | Panel Mount Front | 42 V | Wire Leads | Off-On | IP67 - Dust Tight Waterproof | Capacitive Illuminated | Silver | Finger Guide |
